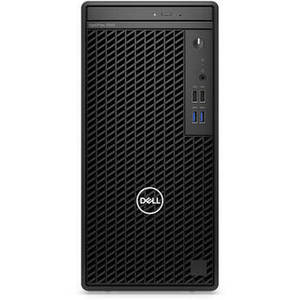

Product Description
For storage of your files, this system is equipped with a 512GB NVMe PCIe M.2 SSD, with options to add 2.5" and 3.5" drives. If you want to add external storage drives, optical drives, printers, memory card readers, or other peripherals, the OptiPlex 3000 features four 5 Gb/s USB 3.2 Gen 1 Type-A ports and four 480 Mb/s USB 2.0 Type-A ports. The integrated Intel UHD Graphics 770 chipset delivers a sharp, clear picture, while allowing for multiple simultaneous displays to be used via its DisplayPort 1.4 and HDMI 1.4b ports. Network connectivity is achieved using an integrated Gigabit Ethernet portand there is also an 8x DVD±RW drive for working with optical media.
The OptiPlex 3000 Tower includes a Dell KB216 USB keyboard, an MS116 USB mouse, and a power cord. It is powered by an internal 180W power supply and the installed operating system is Windows 10 Pro (64-Bit). Also included is a Windows 11 Pro license.
| Operating System | Windows 10 Pro (64-Bit) |
| Performance | |
| CPU Architecture | x86 |
| Chipset | Intel B660 |
| Processor | Intel Core i5-12500 (12th Gen) |
| CPU Socket | LGA 1700 |
| CPU | 3 to 4.6 GHz Performance 6-Core |
| L3 Cache | 18 MB |
| Graphics Type | Integrated |
| GPU | Intel UHD Graphics 770 |
| Memory Type | 3200 MHz DDR4 |
| Total Installed Memory | 16 GB |
| Memory Configuration | 1 x 16 GB (User-Replaceable) |
| Maximum Memory Capacity | 64 GB |
| Memory Slot Type | 288-Pin DIMM |
| Memory Slots | 2 (1 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| vPro Support | |
| Display | |
| Panel Type | |
| Size | |
| Aspect Ratio | |
| Resolution | |
| Touchscreen | |
| Finish | |
| Maximum Brightness | |
| Color Gamut | |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | |
| 2.5" Slots | |
| SSD Slots | 1 x M.2 2230, 2280 PCIe 3.0 / PCIe 4.0 x4 (In Use) |
| Total Installed Capacity | 512 GB |
| Solid State Storage | 1 x 512 GB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | 1 x PCIe x16 2 x PCIe x1 |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | 8x-Speed Tray-Load SuperMulti DVD Burner with Dual Layer Support |
| I/O | |
| Ports | 4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4 x USB-A (USB 2.0) |
| USB Type-C | |
| Display | 1 x DisplayPort 1.4 1 x HDMI 1.4b |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | 1 x 2 W |
| Built-In Microphones | None |
| Media/Memory Card Slot | None |
| Communications | |
| Ethernet | 1 x RJ45 (Gigabit) |
| Wi-Fi | None |
| MU-MIMO Support | None |
| Bluetooth | None |
| SIM Card Size | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| GPS | |
| NFC | No |
| Webcam | |
| Battery | |
| Battery Chemistry | |
| Capacity | |
| Estimated Battery Life | |
| Keyboard & Mouse | |
| Keyboard | USB Chiclet Full-Size Keyboard with Number Pad |
| Pointing Device | USB Mouse |
| General | |
| Security | Chassis Intrusion Switch, Dedicated Hardware TPM Security Chip, Kensington Lock Slot |
| Power Supply | 180 W with IEC |
| AC Input Power | 90 to 264 VAC, 50 / 60 Hz at 3 A |
| Operating Temperature | 50 to 95°F / 10 to 35°C |
| Operating Humidity | 20 to 80% (Non-Condensing) |
| Certifications | ENERGY STAR, EPEATGOLD, RoHS, WEEE *as per Manufacturer |
| Mounting-Hole Pattern | |
| Dimensions | 12.77 x 11.5 x 6.06" / 324.36 x 292.1 x 153.92 mm |
| Weight | 14.59 lb / 6.62 kg |
