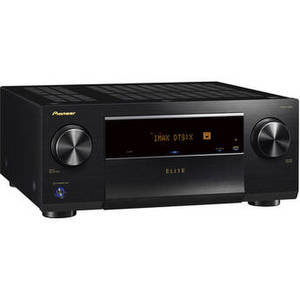

Elite VSX-LX505 9.2-Channel Network A/V Receiver
Product Description
Ensuring your space is filled with accurate sound and eye-popping visuals, the Elite VSX-LX505 9.2-Channel Network A/V Receiver from Pioneer utilizes a host of features and technological capabilities. You can calibrate audio to your specific space with either DIRAC Live or MCACC. Films in 4K HDR can look and sound more authentic with IMAX Enhanced support. For all of your visual content, the LX505 provides up to 8K resolution at 60 Hz, or 4K at 120 Hz, which is ideal for smooth playback of movies and games. Other gaming enhancements are included thanks to HDMI 2.1 support, as well as access to music streaming and multi-room playback.
| Amplifier | |
| Amplifier Type | |
| Channels | 9.2 With External Amplifier: 11.2 |
| Number of Subwoofer Channels | |
| Amplifier Class | |
| Power Output per Channel | 1-Channel Driven: 230 W at 6 Ohms / 1 kHz / 10% THD 2-Channel Driven: 120 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD |
| Dynamic Power per Channel | |
| Frequency Response | |
| THD+N | |
| THD | |
| Residual Output Noise | |
| Channel Separation | |
| Speaker Impedance | |
| Tone Control | |
| Damping Factor | |
| Audio Processing | |
| DTS Compatibility | DTS 96/24, DTS Express, DTS Neural:X, DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X |
| Dolby Compatibility | Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Digital Plus, Dolby TrueHD |
| Auro 3D Support | No |
| Upmixing Technology | Dolby Surround, Dolby Atmos Height Virtualization Technology |
| Supported File Formats | |
| Supported Sample Rates | |
| DAC | 192 kHz / 24-Bit |
| Video | |
| HDR Compatibility | HDR10+, Hybrid Log Gamma |
| Pass-Through Support | |
| Upscaling | 1080p to 8K UHD |
| GUI | Yes |
| Connectivity | |
| Rear A/V Inputs | 6 x HDMI 2.1 1 x USB Type-A 1 x Digital Coaxial 1 x Optical TOSLINK 1 x 3RCA Component 2 x RCA Composite 4 x Stereo RCA 1 x Stereo RCA (Phono) with Ground Screw |
| Rear A/V Outputs | 1 x HDMI 1 x HDMI Zone 2 1 x Stereo RCA Zone 2 / Zone B Line-Out 1 x Stereo RCA Zone 3 Pre-/Line-Out 1 x 9-Channel RCA Pre-Out 2 x RCA Subwoofer Pre-Out |
| Front I/O | 1 x HDMI Aux Input 1 x USB Type-A Input 1 x 1/8" / 3.5 mm Setup Mic Input 1 x 1/4" / 6.35 mm Headphone Output |
| Headphone Output Power | |
| Other Rear I/O | 1 x RJ45 (Ethernet) Input/Output 1 x DE-9 (RS-232C) Input 1 x 1/8" / 3.5 mm (IR) Input 1 x 1/8" / 3.5 mm (IR) Output 1 x 1/8" / 3.5 mm (12 V Trigger) Input 1 x 1/8" / 3.5 mm (12 V Trigger) Output 1 x FM Coaxial F-Type Input 1 x AM Block Input |
| Speaker Connectors | 11 x Binding Post Pair (Front, Center, Height, Height 2, Rear, Rear Surround) |
| HDCP Support | Version 2.3 |
| HDMI Compression Modes | Not Specified by Manufacturer |
| Audio Return Channel (ARC) | ARC, eARC |
| HDMI CEC | Yes |
| Media Card Slot | None |
| A/B Speaker Selection | |
| Bi-Amp Capability | |
| Input Impedance | |
| Input Sensitivity | |
| Max Input Level | |
| Phono RIAA EQ Deviation | |
| Rated Output / Impedance | |
| Dynamic Range | |
| Signal to Noise Ratio | |
| Total Harmonic Distortion (THD) | |
| Channel Separation | |
| Crosstalk | |
| Wireless Connectivity | |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Wireless Security | |
| Bluetooth | |
| Bluetooth Profiles | |
| Supported Audio Codecs | AAC, SBC, aptX, aptX HD |
| Bluetooth Range | |
| Wireless Audio Protocols | AirPlay 2, Chromecast built-in, DTS Play-Fi |
| DLNA Support | |
| Control | |
| External Control Support | Android/iOS Control App |
| Virtual Assistant | Works with Alexa, Works with Google Assistant |
| Tuner Section | |
| Tuner Type | AM, FM |
| Number of Tuner Presets | 40 Stations |
| Radio Frequencies | |
| Sensitivity | |
| Signal to Noise Ratio | |
| Distortion | |
| Power | |
| AC Input Power | 120 VAC, 60 Hz |
| AC Power Output | |
| Power Consumption | Active: 850 W Standby: 0.1 W |
| Physical | |
| Dimensions (W x H x D) | 17.1 x 7.3 x 15.2" / 435.0 x 185.0 x 386.0 mm |
| Weight | 28.7 lb / 13 kg |
