Product Description

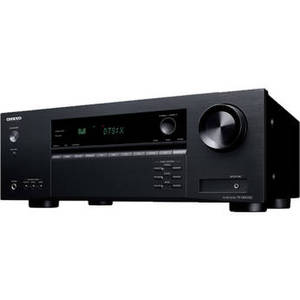

As the central hub of your home theater system, the TX-NR5100 7.2-Channel Network A/V Receiver from Onkyo provides a wide array of features to let you enjoy high-end movie, music, and gaming content. Four HDMI 2.1 inputs support up to 8K60 or 4K120 resolutions with dynamic HDR for stunning visuals and smooth gaming. Immersive 5.2.2-channel Dolby Atmos or DTS:X surround sound is possible with audio outputting at 165W per channel. Music can be streamed to your audio system or throughout your home over dual-band Wi-Fi or Bluetooth via mobile devices or a host of streaming services.
| Amplifier | |
| Amplifier Type | |
| Channels | 5.2.2 |
| Number of Subwoofer Channels | |
| Amplifier Class | |
| Power Output per Channel | 1-Channel Driven: 165 W at 6 Ohms / 1 kHz / 10% THD 2-Channel Driven: 80 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD |
| Dynamic Power per Channel | 160 W at 3 Ohms (Front) 125 W at 4 Ohms (Front) 85 W at 8 Ohms (Front) |
| Frequency Response | 10 Hz to 100 kHz +1 dB (Direct, Pure Mode) |
| THD+N | 0.08% (20 Hz to 20 kHz) |
| THD | |
| Residual Output Noise | |
| Channel Separation | |
| Speaker Impedance | 4 to 16 Ohms |
| Tone Control | Bass (20 Hz): ±10.0 dB Treble (20 kHz): ±10.0 dB |
| Damping Factor | |
| Audio Processing | |
| DTS Compatibility | DTS Virtual:X, DTS-HD Master Audio, DTS:X |
| Dolby Compatibility | Dolby Atmos, Dolby TrueHD |
| Auro 3D Support | No |
| Upmixing Technology | DTS Virtual:X, Dolby Atmos Height Virtualization Technology |
| Supported File Formats | |
| Supported Sample Rates | |
| DAC | |
| Video | |
| HDR Compatibility | HDR10+ |
| Pass-Through Support | 4K120p |
| Upscaling | None |
| GUI | Yes |
| Connectivity | |
| Rear A/V Inputs | 4 x HDMI 2.1 3 x RCA 1 x Digital Coaxial 1 x Optical TOSLINK |
| Rear A/V Outputs | 2 x HDMI 2 x RCA Subwoofer Pre-Out 1 x Stereo RCA Zone B Pre-/Line-Out |
| Front I/O | 1 x 1/4" / 6.35 mm Headphone Output 1 x 1/8" / 3.5 mm Setup Mic Input |
| Headphone Output Power | |
| Other Rear I/O | 1 x RJ45 (Ethernet) Input/Output 1 x USB Type-A (Power) Output 1 x FM Coaxial F-Type Input 1 x AM Block Input |
| Speaker Connectors | 5 x Spring Clip Pairs (Center, Height, Rear Surround) 2 x Binding Post Pairs (Front) |
| HDCP Support | Version 2.3 |
| HDMI Compression Modes | 4K120AB / 8K60B |
| Audio Return Channel (ARC) | ARC, eARC |
| HDMI CEC | Yes |
| Media Card Slot | None |
| A/B Speaker Selection | |
| Bi-Amp Capability | Yes |
| Input Impedance | Line: 32 Kilohms |
| Input Sensitivity | Line: 200 mVrms |
| Max Input Level | |
| Phono RIAA EQ Deviation | |
| Rated Output / Impedance | Zone B Line-Out: 1 Vrms / 2.2 Kilohms Zone B Line-Out: 200 mVrms / 2.2 Kilohms |
| Dynamic Range | |
| Signal to Noise Ratio | Line: 106 dB (IHF-A) |
| Total Harmonic Distortion (THD) | |
| Channel Separation | |
| Crosstalk | |
| Wireless Connectivity | |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Wireless Security | |
| Bluetooth | |
| Bluetooth Profiles | |
| Supported Audio Codecs | AAC, SBC, aptX, aptX HD |
| Bluetooth Range | |
| Wireless Audio Protocols | AirPlay 2, Chromecast built-in, DTS Play-Fi, Roon Ready |
| DLNA Support | |
| Control | |
| External Control Support | Android/iOS Control App |
| Virtual Assistant | Works with Alexa, Works with Google Assistant |
| Tuner Section | |
| Tuner Type | AM, FM |
| Number of Tuner Presets | 40 Stations |
| Radio Frequencies | AM: 530 to 1710 kHz FM: 87.5 to 107.9 MHz |
| Sensitivity | |
| Signal to Noise Ratio | |
| Distortion | |
| Power | |
| AC Input Power | 120 VAC, 60 Hz |
| AC Power Output | |
| Power Consumption | Active: 490 W No Sound: 45 W Standby: 0.1 W |
| Physical | |
| Dimensions (W x H x D) | 17.1 x 6.3 x 12.9" / 435.0 x 160.0 x 328.0 mm |
| Weight | 18.5 lb / 8.4 kg |
