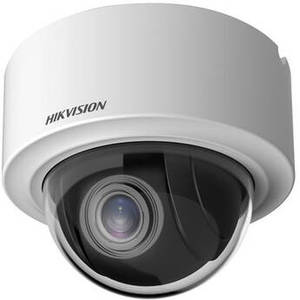

DS-2DE3404W-DE 4MP Outdoor PTZ Network Mini Dome Camera with 2.8-12mm Lens
Product Description
Monitor an indoor or outdoor area with the DS-2DE3404W-DE 4MP PTZ Network Mini Dome Camera from Hikvision. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 30 fps. A 2.8-12mm varifocal lens delivers a 93.8 to 31.7° horizontal field of view. The camera features a 350° pan range, a 0 to 90° tilt range, and 4x optical zoom. Two-way audio is possible thanks to an audio input and output. A built-in memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Compliance with ONVIF profiles G, S, and T enables interoperability with a wide range of surveillance devices. This PTZ camera is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 4 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 2.8 to 12mm |
| Maximum Aperture | f/1.5 |
| Zoom | Optical: 4x Digital: 16x |
| Lens Field of View | Horizontal: 93.8 to 31.7° Vertical: 50.9 to 17.9° Diagonal: 110.3 to 36.1° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.005 Lux B&W: 0.001 Lux |
| Shutter Speed | 1/30000 to 1 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2560 x 1440 at 30 fps (16 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM |
| Built-In Mic | |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | Programmed Pan: 350° at 60°/s Programmed Tilt: 90° (0 to 90°) at 50°/s |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Motion Detection, Video Tampering Alarm, Alarm Input & Output, Exception, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 10.5 W |
| Environmental | |
| Operating Temperature | -22 to 149°F / -30 to 65°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 90% (Non-Condensing) |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x Serial 9-Pin (RS-485) |
| Illumination | |
| Video Management Software | iVMS-4200, Hik-Connect, HikCentral |
| Supported Languages | Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese |
| Certifications | |
| Material of Construction | Aluminum, Polymer |
| Dimensions | �: 5.5 x H: 4.2" / �: 140.7 x H: 107.2 mm |
| Weight | 2.1 lb / 950 g |
