Product Description

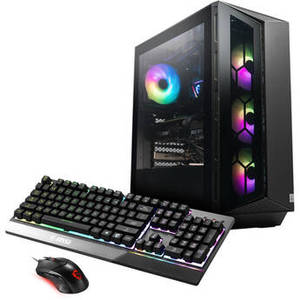

Equipped with a 12th Gen 2.5GHz Intel Core i5 processor, 16GB of 3200 MHz DDR4 RAM, and a 500GB M.2 NVMe SSD, the Aegis R can deliver enhanced performance with quicker load times and efficient multitasking. With the NVIDIA GeForce RTX 3050 dedicated graphics card, you can explore virtual worlds with detailed visuals and smooth frame rates with 8GB of GDDR6 VRAM, ray tracing, and DLSS technology. Connect an array of peripherals from external drives to gaming controllers to the Aegis R with USB 3.2 Gen 1 and Gen 2 Type-A and Type-C ports or use Bluetooth 5.2 technology for a true cable-free experience. Wi-Fi 6 (802.11ax) technology enables you to connect to your network wirelessly or use the integrated 2.5 Gigabit Ethernet port for enhanced speeds ideal for high-speed online gaming.
| Operating System | Windows 11 Home |
| Model Year | Mid 2022 |
| Performance | |
| CPU Architecture | x86 |
| Chipset | Intel B660 |
| Processor | Intel Core i5-12400F (12th Gen) |
| CPU Socket | LGA 1700 |
| CPU | 2.5 to 4.4 GHz 6-Core |
| L3 Cache | 18 MB |
| Graphics Type | Dedicated |
| GPU | NVIDIA GeForce RTX 3050 with 8 GB GDDR6 VRAM |
| Memory Type | 3200 MHz DDR4 |
| Total Installed Memory | 16 GB |
| Memory Configuration | 2 x 8 GB (User-Replaceable) |
| Maximum Memory Capacity | |
| Memory Slot Type | 288-Pin DIMM |
| Memory Slots | |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| Panel Type | |
| Size | |
| Aspect Ratio | |
| Resolution | |
| Touchscreen | |
| Finish | |
| Maximum Brightness | |
| Color Gamut | |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | 2 x 2.5" (Internal) 2 x 2.5/3.5" (Internal) |
| 2.5" Slots | |
| SSD Slots | 1 x M.2 PCIe 4.0 x4 1 x M.2 SATA / PCIe 4.0 x4 |
| Total Installed Capacity | 500 GB |
| Solid State Storage | 1 x 500 GB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | 1 x PCIe 4.0 x16 3 x PCIe 3.0 x16 [x1 Mechanical] |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | None |
| I/O | |
| Ports | 6 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) 1 x USB Type-A (USB 3.1 / USB 3.2 Gen 2) 2 x USB Type-A (USB 2.0) |
| USB Type-C | 1 x USB 3.1 / USB 3.2 Gen 1 1 x USB 3.1 / USB 3.2 Gen 2 |
| Display | 1 x HDMI 3 x DisplayPort |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output 1 x 1/8" / 3.5 mm Microphone Input |
| Built-In Speakers | None |
| Built-In Microphones | None |
| Media/Memory Card Slot | None |
| Communications | |
| Ethernet | 1 x RJ45 (2.5GbE) |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| MU-MIMO Support | Yes |
| Bluetooth | 5.2 |
| SIM Card Size | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| GPS | |
| NFC | No |
| Webcam | |
| Battery Chemistry | |
| Capacity | |
| Estimated Battery Life | |
| Keyboard & Mouse | |
| Keyboard | Full-Size Keyboard |
| Pointing Device | USB Mouse |
| General | |
| Security | |
| Power Supply | 550 W with IEC |
| AC Input Power | |
| Operating Temperature | |
| Operating Humidity | |
| Mounting-Hole Pattern | |
| Dimensions | 17.72 x 16.93 x 8.46" / 45.01 x 43 x 21.49 cm |
| Weight | 29.98 lb / 13.6 kg |
