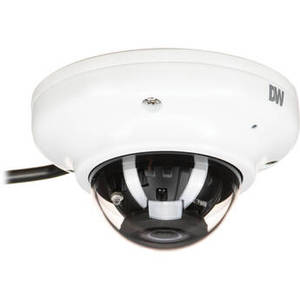

MEGApix DWC-MV72WI28ATW 2.1MP Outdoor Network Dome Camera with Night Vision & 2.8mm Lens
Product Description
Monitor an indoor or outdoor area with the low-profile MEGApix DWC-MV72WI28ATW from Digital Watchdog. This unit uses a 1/2.8" CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Smart IR provides up to 80' of night vision. The camera features a 2.8mm fixed lens that delivers a 111° horizontal field of view, a built-in microphone, and an onboard memory card slot that supports microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This NDAA-compliant dome camera is housed in an IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 2.1 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 2.8mm |
| Maximum Aperture | f/2 |
| Zoom | |
| Lens Field of View | Horizontal: 111° Vertical: 62° |
| IR Cut Filter | Mechanical |
| Day/Night | True |
| Minimum Illumination | Color: 0.05 Lux B&W: 0 Lux |
| Shutter Speed | 1/32000 to 1/15 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 30 fps (10 Mb/s ) |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 2 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | G.711 |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering |
| Supported Protocols | APIPA, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IPv4/v6, NTP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | |
| Analytics | Motion Detection, Intrusion, Line Crossing, Line Counting, Loitering, Enter, Exit, Tamper |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of May, 2022: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [Class 10/U1/V10 or Faster Recommended] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 3.7 W PoE: 5.5 W |
| Environmental | |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 10 to 90% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | IR LEDs up to 80' / 24.38 m |
| Video Management Software | DW Spectrum IPVMS |
| Supported Languages | |
| Certifications | |
| Material of Construction | Aluminum, Polymer |
| Dimensions | �: 4.1 x H: 2.4" / �: 105.0 x H: 61.0 mm |
| Weight | 0.79 lb / 0.36 kg |
