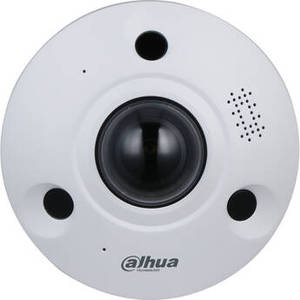

DH-IPC-EBW81242N-AS-S2 12MP Outdoor Network Panoramic Fisheye Camera with Night Vision
Product Description
Monitor an indoor or outdoor area with the DH-IPC-EBW81242N-AS-S2 12MP Network Panoramic Fisheye Camera from Dahua Technology. This unit uses a 1/1.7" progressive scan CMOS sensor to capture 4000 x 3000 resolution video at 25 fps. Three IR LEDs provide up to 33' of night vision. The camera's 1.85mm fixed lens delivers a 185° horizontal field of view. Two-way audio communication is possible thanks to a built-in microphone and speaker, along with an audio input and an audio output. A memory card slot accepts microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This fisheye camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 12 MP 1/1.7" CMOS |
| Lens Mount | M12 |
| Focal Length | 1.8mm |
| Maximum Aperture | f/2 |
| Zoom | |
| Lens Field of View | Horizontal: 185° Vertical: 180° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.01 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 4000 x 3000 at 25 fps (16.384 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.723, G.726, PCM |
| Built-In Mic | Yes |
| Built-In Speaker | Yes |
| Audio I/O | Input: RCA Output: RCA |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Lockout, MAC Address Filtering |
| Supported Protocols | ARP, DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP, syslog |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T, CGI, Milestone, Genetec, P2P |
| Analytics | Tampering, Memory Card Error, Network Error, Unauthorized Access, IP Address Conflict, Scene Change, Tripwire, Intrusion, Heat Mapping, Perimeter Protection (Tripwire & Intrusion), People Counting, Queue Management |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 2 / 2 |
| Hardware | |
| Memory | 4 GB RAM / 2000 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3at (30 W) |
| Power Consumption | DC: 13 W PoE+: 13.9 W |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 3 x IR LEDs up to 32.8' / 10 m |
| Video Management Software | DSS, DMSS |
| Supported Languages | |
| Certifications | |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | �: 5.9 x H: 2.4" / �: 149.8 x H: 59.8 mm |
| Weight | 1.74 lb / 0.79 kg |
