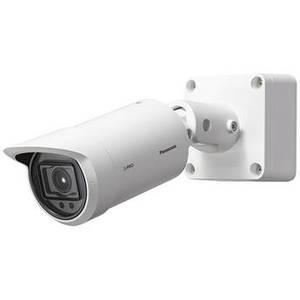

WV-S1536LN 1080p Outdoor Network Bullet Camera with Night Vision, 2.9-9mm Lens & Heater (White)


From i-PRO | Model #: IPWVS1536LN



See more in Cameras


WV-S1536LN 1080p Outdoor Network Bullet Camera with Night Vision, 2.9-9mm Lens & Heater (White)

Product Description

Monitor an indoor or outdoor area with the white WV-S1536LN 1080p Network Bullet Camera from i-PRO. This unit uses a 1/2.8" CMOS image sensor to capture 1920 x 1080 resolution video at 60 fps. An IR LED provides up to 230' of night vision. The camera's 2.9-9mm motorized varifocal lens delivers a 117 to 37° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A built-in memory card slot accepts microSD/SDHC/SDXC cards up to 512GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.

This bullet camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated aluminum enclosure for outdoor use in areas at risk of vandalism. An integrated heater ensures that the camera will be operational in temperatures as low as -40°F.

Camera
Sensor 2 MP 1/2.8" CMOS
Lens Mount
Focal Length 2.9 to 9mm
Maximum Aperture f/1.3 to 2.5
Zoom Optical: 3.1x
Lens Field of View Horizontal: 117 to 37°
Vertical: 62 to 21°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.007 Lux
B&W: 0 Lux
Shutter Speed 1/10000 to 1/60 Seconds
Camera Angle Adjustment
Smart Specs
Smart Home Ecosystems
App Compatible
Cloud Platform
Desktop Software
Video
Multi-View Streaming
Video Modes
Streaming Resolution 1920 x 1080 at 60 fps
Supported Video Compression H.264, H.265, MJPEG
Multi-View Streaming Yes
Automatic Gain Control Yes
Video Output Connectors 1 x BNC (Composite)
Output Formats
Audio
1- or 2-Way Audio Two-Way
Audio Formats AAC-LC, G.711, G.726
Built-In Mic
Built-In Speaker
Audio I/O Input:
1/8" / 3.5 mm
Output:
1/8" / 3.5 mm
Pan & Tilt
Up-the-Coax Communication
Presets
Supported Control Protocols
Pan/Tilt None
Move Speed
Movement Range
Networking
Security HTTPS, IEEE 802.1X
Supported Protocols ARP, DDNS, DHCP, DNS, DiffServ, HTTP, ICMP, IGMP, IPv4/v6, NTP, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSL/TLS, TCP, UDP, UPnP
Wireless
Frequency Range
Wi-Fi Bands
Wi-Fi Standards
CDMA 3G
GSM 3G/3.5G
4G LTE
5G NR
Bluetooth
Wireless Range
Encryption
System Integration
Application Programming Interface (API) ONVIF Profiles G, S & T
Analytics Video Motion Detection, Scene Change Detection, Audio Detection, AI Sound Classification, AI Analytics
Built-In Installation Aids
OS Compatibility Android
iOS
*As of June, 2022: Check with manufacturer for the most up-to-date compatibility
Sensors & Alarms
Sensors
Sensor Range
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Alarm I/O 3 / 2
Hardware
Memory
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]
Internal Storage None
External Storage Options
Power
Power
Built-In Battery
Battery Type
Power Source DC, PoE 802.3af (15 W)
Power Consumption DC: 8.5 W (With Heater)
PoE: 9.1 W (With Heater)
Environmental
Operating Temperature -40 to 140°F / -40 to 60°C
Startup Temperature
Storage Temperature
Operating Humidity 10 to 100% (Non-Condensing)
IP Rating IP66
IK Rating IK10
General
Inputs/Outputs 1 x RJ45
1 x Power
1 x BNC
Illumination IR LEDs up to 229.66' / 70 m
Video Management Software
Supported Languages English
French
German
Italian
Japanese
Portuguese
Russian
Simplified Chinese
Spanish
Certifications
Material of Construction Aluminum
Dimensions �: 5.2 x W: 5.2 x L: 15.1" / �: 133.0 x W: 133.0 x L: 383.0 mm
Weight 5.3 lb / 2.4 kg
