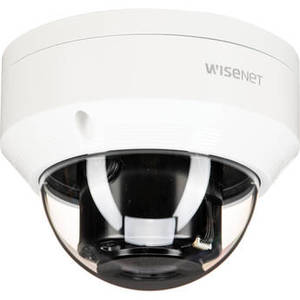

WiseNet LNV-6072R 2MP Outdoor Network Dome Camera with Night Vision & 3.2-10mm Lens
Product Description
Watch your property with the white WiseNet LNV-6072R 2MP Outdoor Network Dome Camera with Night Vision from Hanwha Techwin. Equipped with a 1/2.8" 2MP CMOS sensor and a 3.2-10mm varifocal lens, this camera captures video at resolutions up to 1920 x 1080 at 30 fps in a 132 to 38° diagonal field of view. The camera has an automatic IR cut filter and IR LEDs for night vision with an effective range of up to 98'.
Suitable for use in vandal-prone outdoor locations, the camera is housed in an IP66- and IK10-rated enclosure. PoE technology simplifies setup by enabling you to run just one cable for both data and power, while a microSD card slot allows for edge storage. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
Suitable for use in vandal-prone outdoor locations, the camera is housed in an IP66- and IK10-rated enclosure. PoE technology simplifies setup by enabling you to run just one cable for both data and power, while a microSD card slot allows for edge storage. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
| Camera | |
| Sensor | 2 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 3.2 to 10mm |
| Maximum Aperture | f/1.6 to 2.9 |
| Zoom | Optical: 3.1x |
| Lens Field of View | Horizontal: 109 to 33.2° Vertical: 57.4 to 18.7° Diagonal: 132 to 38° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.095 Lux B&W: 0 Lux |
| Shutter Speed | |
| Camera Angle Adjustment | Horizontal: 0 to 350° Vertical: 0 to 67° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 30 fps (H.264) 1920 x 1080 at 2 fps (MJPEG) |
| Supported Video Compression | H.264, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | SUNAPI (HTTP API) |
| Analytics | Tamper and Motion Detection |
| Built-In Installation Aids | |
| OS Compatibility | Windows 7 Windows 8.1 Windows 10 macOS 10.12 to 10.14 *As of February, 2020: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | |
| Alarm I/O | |
| Hardware | |
| Memory | 512 MB RAM / 256 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC [32 GB Maximum] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | PoE 802.3af (15 W) |
| Power Consumption | 6.4 W |
| Environmental | |
| Operating Temperature | -22 to 131°F / -30 to 55°C |
| Startup Temperature | -4°F / -20°C |
| Storage Temperature | -22 to 131°F / -30 to 55°C |
| Operating Humidity | 89% |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 |
| Illumination | IR LEDs up to 98.4' / 30 m |
| Video Management Software | |
| Supported Languages | Czech Dutch English French German Italian Japanese Korean Polish Portuguese Russian Spanish Swedish Traditional Chinese Turkish |
| Certifications | |
| Material of Construction | Aluminum, Plastic |
| Dimensions | �: 5.4 x H: 4.2" / �: 137.8 x H: 106.1 mm |
| Weight | 1.16 lb / 525 g |
