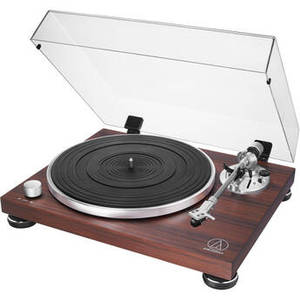

AT-LPW50BT-RW Manual Two-Speed Turntable with Bluetooth
Product Description
The AT-LPW50BT-RW Manual Two-Speed Turntable with Bluetooth from Audio-Technica is designed to produce clean and accurate audio from your vinyl collection. The thick, 1.2" MDF plinth helps to dampen and reduce low-frequency feedback, while the belt-driven motor uses a sensor to ensure that it's always rotating at the proper 33 1/3 or 45 rpm speeds. When it comes to playback, you have a few options to choose from. The selectable phono preamp lets you connect the turntable directly to an external speaker or through your home stereo system. You can even go wireless and stream to an external Bluetooth speaker.
| Quantity | 1 |
| General | |
| Compatibility | |
| Turntable | Type: Belt-Drive Manual Turntable Motor: DC Servo with Active Speed Stabilization Drive Method: Belt Drive Speeds: 33 1/3 rpm, 45 rpm Turntable Platter: Aluminum Die Casting Wow and Flutter: < 0.15 % WRMS (33 rpm) at 3 kHz Signal-to-Noise Ratio: > 60 dB Output Level (PHONO): 4.0 mV Nominal at 1 kHz, 5 cm/sec Output Level (LINE): 200 mV Nominal at 1 kHz, 5 cm/sec Phono Pre-Amp Gain: 35 dB Nominal, RIAA Equalized |
| Tonearm | Type: Static Balanced Straight Carbon Tonearm Effective Length: 8.8" / 223.6 mm Overhang: 0.73" / 18.6 mm Maximum Tracking Error Angle: Less than 2.0° Stylus Pressure Adjustment Range: 0 to 0.1 oz / 0 to 3.0 g Applicable Cartridge Weight Range (Including Headshell): 0.4 to 0.6 oz / 11.5 to 16.5 g |
| Cartridge and Headshell | Cartridge Model: AT-VM95EBK Cartridge Type: VM Recommended Load Impedance: 47,000 Ohms Output Voltage: 4.0 mV (mV at 1 kHz, 5 cm/sec) Stylus (Bonded Elliptical Stylus): 0.3 � 0.7 mil Cantilever: Aluminum Pipe Tracking Force Range: 0.06 to 0.08 oz / 1.8 to 2.2 g (Standard 0.07 oz / 2.0 g) Cartridge Weight: 0.22 oz / 6.1 g Headshell Model: AT-HS4 SV Headshell Weight (Including Lead Wires): 0.3 oz / 8.5 g Headshell Weight (Excluding Lead Wires): 0.27 oz / 7.7 g Headshell Overhang Adjustment: �0.2" / 5 mm |
| Display | |
| Panel Type | |
| Size | |
| Resolution | |
| Touchscreen | |
| Viewing Angle (H x V) | |
| Maximum Brightness | |
| Inputs / Outputs | |
| Connector 1 | |
| Connector 2 | |
| USB I/O | |
| Video I/O | |
| Audio I/O | 1 x 2RCA Output |
| Media/Memory Card Slot | |
| Wireless | |
| Wi-Fi | |
| Bluetooth | 5.2 |
| App Compatible | |
| Global Positioning (GPS, GLONASS, etc.) | |
| Bluetooth | RF Output: 15 mW EIRP Maximum Communication Range (Line of Sight): 33' / 10 m (Approximately) Frequency Band: 2.402 GHz to 2.480 GHz Modulation Method: GFSK, Pi/4DQPSK, and 8DPSK Supported Bluetooth Profiles: A2DP Supported Codec: SBC |
| Battery | |
| Battery Chemistry | |
| Battery Capacity | |
| Output Voltage | |
| Cells | |
| Charging Power | |
| Recharge Time | |
| Maximum Battery Life | |
| Power | |
| Power Source | AC Input (Included) |
| Power I/O | |
| Center Tip Polarity | |
| Battery Type | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.6 A |
| DC Input Power | 12 VDC at 1 A |
| Power Consumption | 1.8 W |
| Operating Current | |
| Maximum Power Output | |
| Environmental | |
| IP Rating | |
| IK Rating | |
| Certifications | |
| Operating Temperature | |
| Operating Humidity | |
| Operating Altitude | |
| Charging Temperature | |
| Discharging Temperature | |
| Storage Temperature | |
| Storage Humidity | |
| Storage Altitude | |
| Physical | |
| Size | |
| Mounting | |
| Load Capacity | |
| Color | Rosewood Woodgrain |
| Material of Construction | MDF, Aluminum, Carbon |
| Cable Length | 3.3' / 1 m (RCA Audio) 4.9' / 1.5 m (AC Adapter) |
| Dimensions | 1.4 x 1.1 x 0.4' / 420 x 340 x 126 mm |
| Weight | 12.1 lb / 5.5 kg |
