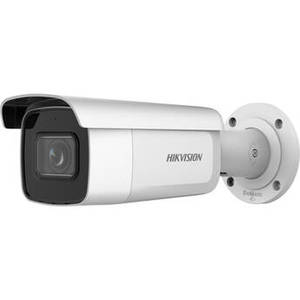

AcuSense DS-2CD2643G2-IZS 4MP Outdoor Network Bullet Camera with Night Vision & 2.8-12mm Lens
Product Description
Monitor an indoor or outdoor area with the AcuSense DS-2CD2643G2-IZS 4MP Network Bullet Camera from Hikvision. This unit uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. IR LEDs provide up to 197' of night vision. The camera's 2.8-12mm motorized varifocal lens delivers a 95.8 to 29.2° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera complies with ONVIF profiles G and S, making it compatible with a wide range of surveillance devices. The camera's aluminum enclosure is IP67 and IK10 rated for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 4 MP 1/3" CMOS |
| Lens Mount | M14 |
| Focal Length | 2.8 to 12mm |
| Maximum Aperture | f/1.6 |
| Zoom | Optical: 4.3x |
| Lens Field of View | Horizontal: 95.8 to 29.2° Vertical: 50.6 to 16.4° Diagonal: 114.6 to 33.4° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.005 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2688 x 1520 at 30 fps (8 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | 1 x RJ45 |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC, G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| Built-In Mic | |
| Built-In Speaker | |
| Audio I/O | Input: 2-Pin Terminal Block Output: 2-Pin Terminal Block |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G & S, ISAPI, SDK |
| Analytics | Motion Detection (Supports Human and Vehicle Targets Classification), Video Tampering Alarm, Exception, Face Detection, Perimeter Protection (Line Crossing Detection, Intrusion Detection: Supports Human and Vehicle Targets Classification) |
| Built-In Installation Aids | Pixel Counter |
| OS Compatibility | Android iOS *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3at (30 W) |
| Power Consumption | DC: 13 W PoE+: 15 W |
| Environmental | |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | -22 to 140°F / -30 to 60°C |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 850 nm IR LEDs up to 196.9' / 60 m |
| Video Management Software | iVMS-4200, Hik-Connect, Hik-Central |
| Supported Languages | Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese |
| Certifications | |
| Material of Construction | Aluminum |
| Dimensions | H: 3.7 x W: 3.9 x L: 12.1" / H: 93.0 x W: 97.9 x L: 308.5 mm |
| Weight | 3.1 lb / 1390 g |
