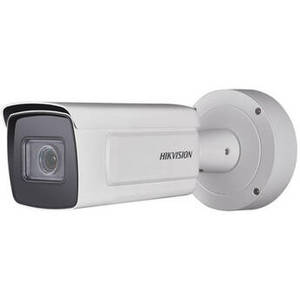

DeepinView IDS-2CD7A46G0/P-IZHSY 4MP Outdoor Network Bullet Camera with Night Vision & 8-32mm Lens

Product Description
Monitor an indoor or outdoor area with the DeepinView IDS-2CD7A46G0/P-IZHSY 4MP Network Bullet Camera from Hikvision. This unit uses a 1/1.8" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at up to 30 fps. Supplemental IR illumination provides up to 330' of night vision. The camera's 8-32mm varifocal lens delivers a 42.5 to 15.1° horizontal field of view.
Deep learning functions include perimeter protection, road traffic and vehicle detection with license plate recognition, and metadata of road traffic. Two-way audio is possible thanks to an audio input and an audio output. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-, NEMA 4X-, and IK10-rated aluminum enclosure for outdoor use in areas at risk of vandalism.
Camera | |
Sensor | 4 MP 1/1.8" CMOS |
Lens Mount | |
Focal Length | 8 to 32mm |
Maximum Aperture | f/1.7 to 1.73 |
Zoom | Optical: 4x |
Lens Field of View | Horizontal: 42.5 to 15.1° Vertical: 23.3 to 8.64° Diagonal: 49.6 to 17.3° |
IR Cut Filter | Mechanical |
Day/Night | Yes |
Minimum Illumination | Color: 0.0005 Lux B&W: 0 Lux |
Shutter Speed | 1/100000 to 1 Seconds |
Camera Angle Adjustment | |
Smart Specs | |
Smart Home Ecosystems | |
App Compatible | |
Cloud Platform | |
Desktop Software | |
Video | |
Multi-View Streaming | |
Video Modes | |
Streaming Resolution | 2688 x 1520 at 30 fps (8 Mb/s ) |
Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
Multi-View Streaming | Yes, 5 Streams |
Automatic Gain Control | Yes |
Video Output Connectors | 1 x BNC |
Output Formats | |
Audio | |
1- or 2-Way Audio | Two-Way |
Audio Formats | AAC, G.711, G.722.1, G.726, MP2L2, MP3, PCM |
Built-In Mic | |
Built-In Speaker | |
Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
Pan & Tilt | |
Up-the-Coax Communication | |
Presets | |
Supported Control Protocols | |
Pan/Tilt | None |
Move Speed | |
Movement Range | |
Networking | |
Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark |
Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSL/TLS, TCP, UDP, UPnP |
Wireless | |
Frequency Range | |
Wi-Fi Bands | |
Wi-Fi Standards | |
CDMA 3G | |
GSM 3G/3.5G | |
4G LTE | |
5G NR | |
Bluetooth | |
Wireless Range | |
Encryption | |
System Integration | |
Application Programming Interface (API) | ONVIF Profiles G, S & T, ISAPI, SDK, ISUP |
Analytics | Motion Detection, Video Tampering Alarm, Exception (Network Disconnected, IP Address Conflict, Illegal Login, Abnormal Reboot, HDD Full, HDD Error), Video Quality Diagnosis, Vibration Detection, Intrusion Detection (4 Configurable Regions), Scene Change Detection, Audio Exception Detection, Defocus Detection, Line Crossing Detection (4 Configurable Lines), Region Entrance Detection (4 Configurable Regions), Region Exiting Detection (4 Configurable Regions), Perimeter Protection, Road Traffic & Vehicle Detection, Metadata |
Built-In Installation Aids | Pixel Counter |
OS Compatibility | Android iOS *As of May, 2022: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms | |
Sensors | |
Sensor Range | |
Event Trigger | Yes |
Event Action | Recording, Notification, Alarm |
Data Streaming | Yes |
Alarm I/O | 2 / 2 |
Hardware | |
Memory | |
Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
Internal Storage | None |
External Storage Options | NAS |
Power | |
Power | |
Built-In Battery | |
Battery Type | |
Power Source | DC, PoE 802.3at (30 W) |
Power Consumption | DC: 14.28 W PoE+: 16.8 W |
Environmental | |
Operating Temperature | -40 to 140°F / -40 to 60°C |
Startup Temperature | -40 to 140°F / -40 to 60°C |
Storage Temperature | |
Operating Humidity | 0 to 95% (Non-Condensing) |
IP Rating | IP57 |
IK Rating | IK10 |
General | |
Inputs/Outputs | 1 x RJ45 1 x Power 1 x BNC 1 x Serial 9-Pin (RS-485) |
Illumination | 850 nm IR LEDs up to 330' / 100.6 m |
Video Management Software | iVMS-4200, Hik-Connect, Hik-Central |
Supported Languages | |
Certifications | |
Material of Construction | Aluminum |
Dimensions | �: 5.5 x L: 13.8" / �: 140.0 x L: 351.0 mm |
Weight | 4.3 lb / 1950 g |
