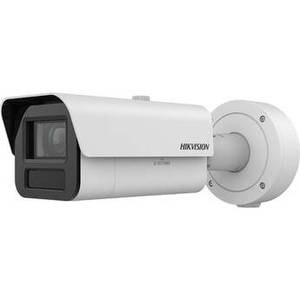

IDS-2CD7A45G0-IZHSY 4MP Outdoor Network Bullet Camera with Night Vision, 4.7-118mm Lens & Heater

Product Description
Monitor an indoor or outdoor area with the IDS-2CD7A45G0-IZHSY 4MP Network Bullet Camera from Hikvision. This unit uses a 1/2.5" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at up to 30 fps. Supplemental IR illumination provides up to 660' of night vision. The camera's 4.7-118mm varifocal lens delivers a 55.8 to 2.8° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-, NEMA 4X-, and IK10-rated aluminum enclosure for outdoor use in areas at risk of vandalism. An integrated heater ensures that the camera will be operational in temperatures as low as -40°F.
Camera | |
Sensor | 4 MP 1/2.5" CMOS |
Lens Mount | |
Focal Length | 4.7 to 118mm |
Maximum Aperture | f/1.6 to 3.8 |
Zoom | Optical: 25x |
Lens Field of View | Horizontal: 55.8 to 2.8° Vertical: 32.3 to 1.6° Diagonal: 63 to 3° |
IR Cut Filter | Mechanical |
Day/Night | Yes |
Minimum Illumination | Color: 0.009 Lux Color: 0 Lux |
Shutter Speed | 1/30000 to 1 Seconds |
Camera Angle Adjustment | |
Smart Specs | |
Smart Home Ecosystems | |
App Compatible | |
Cloud Platform | |
Desktop Software | |
Video | |
Multi-View Streaming | |
Video Modes | |
Streaming Resolution | 2688 x 1520 at 30 fps (8 Mb/s ) |
Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
Multi-View Streaming | Yes, 5 Streams |
Automatic Gain Control | Yes |
Video Output Connectors | 1 x BNC (Composite) |
Output Formats | |
Audio | |
1- or 2-Way Audio | Two-Way |
Audio Formats | AAC, G.711, G.722.1, G.726, MP2L2, MP3, PCM |
Built-In Mic | |
Built-In Speaker | |
Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
Pan & Tilt | |
Up-the-Coax Communication | |
Presets | |
Supported Control Protocols | Pelco-D Pelco-P RS-485 |
Pan/Tilt | None |
Move Speed | |
Movement Range | |
Networking | |
Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark |
Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSL/TLS, TCP, UDP, UPnP |
Wireless | |
Frequency Range | |
Wi-Fi Bands | |
Wi-Fi Standards | |
CDMA 3G | |
GSM 3G/3.5G | |
4G LTE | |
5G NR | |
Bluetooth | |
Wireless Range | |
Encryption | |
System Integration | |
Application Programming Interface (API) | ONVIF Profiles G, S & T, ISAPI, SDK, ISUP |
Analytics | Motion Detection, Video Tampering Alarm, Exception, Video Quality Diagnosis, Vibration Detection, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Scene Change Detection, Audio Exception Detection, Defocus Detection, Face Capture, Multi-Target Detection, Perimeter Protection |
Built-In Installation Aids | Pixel Counter |
OS Compatibility | Android iOS *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms | |
Sensors | |
Sensor Range | |
Event Trigger | Yes |
Event Action | Recording, Notification, Alarm |
Data Streaming | Yes |
Alarm I/O | 2 / 2 |
Hardware | |
Memory | |
Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
Internal Storage | None |
External Storage Options | NAS |
Power | |
Power | |
Built-In Battery | |
Battery Type | |
Power Source | AC, DC, PoE 802.3at (30 W) |
Power Consumption | AC: 19.9 W (With Heater) DC: 20.7 W (With Heater) PoE+: 19.5 W (With Heater) |
Environmental | |
Operating Temperature | -40 to 140°F / -40 to 60°C |
Startup Temperature | -40 to 140°F / -40 to 60°C |
Storage Temperature | -40 to 140°F / -40 to 60°C |
Operating Humidity | 0 to 95% (Non-Condensing) |
IP Rating | IP67 |
IK Rating | IK10 |
General | |
Inputs/Outputs | 1 x RJ45 1 x Power 1 x Serial 9-Pin (RS-485) 1 x BNC |
Illumination | 850 nm IR LEDs up to 660' / 201.2 m |
Video Management Software | iVMS-4200, Hik-Connect, HikCentral |
Supported Languages | Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese |
Certifications | |
Material of Construction | Aluminum |
Dimensions | �: 5.5 x L: 14.9" / �: 140.0 x L: 378.4 mm |
Weight | 4.8 lb / 2160 g |
