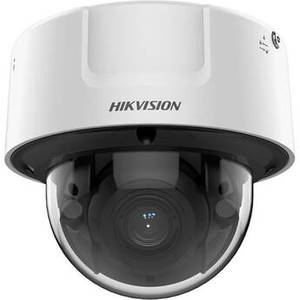

DeepinView IDS-2CD7186G0-IZS 8MP Network Dome Camera with 2.8-12mm Lens
Product Description
Monitor a room or hallway with the DeepinView IDS-2CD7186G0-IZS 8MP Network Dome Camera from Hikvision. This unit uses a 1/1.8" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at up to 30 fps. Supplemental IR illumination provides up to 98' of visibility in low-light conditions. The camera's 2.8-12mm varifocal lens delivers a 112.3 to 41.2° horizontal field of view. Two-way audio is possible thanks to a built-in microphone, along with an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IK10-rated aluminum enclosure for protection from vandalism.
| Camera | |
| Sensor | 8 MP 1/1.8" CMOS |
| Lens Mount | |
| Focal Length | 2.8 to 12mm |
| Maximum Aperture | f/1.2 to 2.5 |
| Zoom | Optical: 4.3x |
| Lens Field of View | Horizontal: 112.3 to 41.2° Vertical: 58 to 23.1° Vertical: 137.3 to 47.3° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.002 Lux B&W: 0.0002 Lux |
| Shutter Speed | 1/100000 to 1 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 355° Horizontal: 0 to 75° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3840 x 2160 at 30 fps (16 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 10 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T, ISAPI, SDK, ISUP |
| Analytics | Motion Detection, Video Tampering Alarm, Exception (Network Disconnected, IP Address Conflict, Illegal Login, HDD Full, HDD Error), Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Scene Change Detection, Audio Exception Detection, Defocus Detection, Counting, Face Capture, Multi-Target Detection, Attribute-Based People Counting, Hard Hat Detection, Queue Management, Perimeter Protection |
| Built-In Installation Aids | Pixel Counter |
| OS Compatibility | Android iOS *As of May, 2022: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | 2 GB RAM / 8000 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | AC, DC, PoE 802.3at (30 W) |
| Power Consumption | AC: 11.8 W DC: 12.4 W PoE+: 12.5 W |
| Environmental | |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | -22 to 140°F / -30 to 60°C |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| IP Rating | |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x BNC 1 x Serial 9-Pin (RS-485) |
| Illumination | 850 nm IR LEDs up to 98.4' / 30 m |
| Video Management Software | iVMS-4200, Hik-Connect |
| Supported Languages | Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese |
| Certifications | |
| Material of Construction | Aluminum |
| Dimensions | �: 5.5 x H: 4.8" / �: 140.5 x H: 122.6 mm |
| Weight | 1.9 lb / 875 g |
