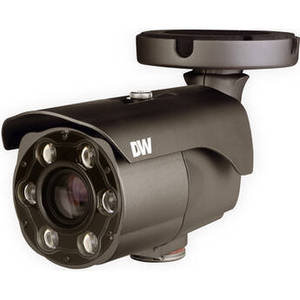

MEGApix IVA DWC-MB48WiAT 4K UHD Outdoor Network Bullet Camera with Night Vision & 2.7-13.5mm Lens
Product Description
Monitor an indoor or outdoor area with the MEGApix IVA DWC-MB48WiAT from Digital Watchdog. This unit uses a 1/2.8" CMOS sensor to capture 3840 x 2160 resolution video at 30 fps. Smart IR provides up to 140' of night vision. The camera's 2.7-13.5mm motorized varifocal lens delivers a 90.3 to 33.1° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A built-in card slot supports microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This NDAA-compliant bullet camera is housed in an IP67- and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 8 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 2.7 to 13.5mm |
| Maximum Aperture | f/1.4 |
| Zoom | Optical: 5x |
| Lens Field of View | Horizontal: 90.3 to 33.1° Vertical: 49 to 18.9° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.09 Lux B&W: 0 Lux |
| Shutter Speed | 1/32000 to 1/15 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3840 x 2160 at 30 fps (10 Mb/s ) |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 2 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | 1 x RJ45 |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711 |
| Built-In Mic | |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering |
| Supported Protocols | APIPA, DDNS, DHCP, DNS, FTP, HTTP, ICMP, NTP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | |
| Analytics | Motion Detection, Intrusion, Line Crossing, Line Counting, Loitering, Enter, Exit, Tamper |
| Built-In Installation Aids | |
| OS Compatibility | Windows 7 Windows 8 Windows 10 *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [Class 10/U1/V10 or Faster Recommended] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3at (30 W) |
| Power Consumption | DC: 10.2 W PoE+: 16 W |
| Environmental | |
| Operating Temperature | -40 to 122°F / -40 to 50°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 10 to 90% (Non-Condensing) |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | IR LEDs up to 140' / 42.7 m |
| Video Management Software | DW Spectrum IPVMS |
| Supported Languages | |
| Certifications | |
| Material of Construction | Aluminum |
| Dimensions | �: 3.2 x L: 12.2" / �: 82.5 x L: 310.0 mm |
| Weight | 2.6 lb / 1.2 kg |
