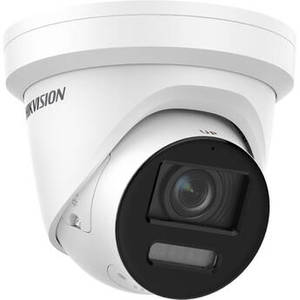

ColorVu DS-2CD2387G2-LSU/SL 8MP Outdoor Network Turret Camera with 2.8mm Lens
Product Description
Monitor an indoor or outdoor area with the ColorVu DS-2CD2387G2-LSU/SL 8MP Network Turret Camera from Hikvision. This unit uses a 1/1.2" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at up to 24 fps. A supplemental white light provides up to 98' of illumination for recording full color video in low-light conditions. The camera's 2.8mm fixed lens delivers a 102° horizontal field of view. Two-way audio is possible thanks to a built-in speaker and microphone, along with an audio input and output. An active strobe light and audio alarm keep intruders at bay. A memory card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure for safe outdoor use.
| Camera | |
| Sensor | 8 MP 1/1.2" CMOS |
| Lens Mount | M |
| Focal Length | 2.8mm |
| Maximum Aperture | f/1 |
| Zoom | |
| Lens Field of View | Horizontal: 102° Vertical: 52° Diagonal: 124° |
| IR Cut Filter | |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.0005 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 360° Vertical: 0 to 75° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3840 x 2160 at 24 fps (16 Mb/s ) 3200 x 1800 at 30 fps |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC, G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| Built-In Mic | Yes |
| Built-In Speaker | Yes |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S, & T, ISAPI, SDK, ISUP |
| Analytics | Motion Detection (Human and Vehicle Targets Classification), Video Tampering Alarm, Exception, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Scene Change Detection, Face Capture |
| Built-In Installation Aids | Pixel Counter |
| OS Compatibility | Android iOS *As of May, 2022: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 8.5 W |
| Environmental | |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | -22 to 140°F / -30 to 60°C |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| IP Rating | IP67 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | White LEDs up to 98.4' / 30 m |
| Video Management Software | iVMS-4200, Hik-Connect, Hik-Central |
| Supported Languages | Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese |
| Certifications | |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | �: 5.4 x H: 4.7" / �: 138.3 x H: 120.1 mm |
| Weight | 2 lb / 900 g |
