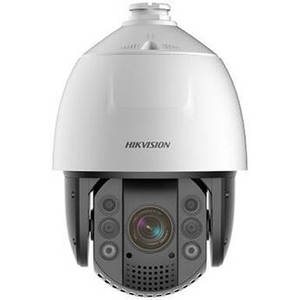

AcuSense DS-2DE7A432IW-AEB 4MP Outdoor PTZ Network Dome Camera with Night Vision & Heater

Product Description
Suitable for monitoring outdoor spaces such as rivers, roadways, railways, airports, squares, parks, and other large venues, the AcuSense DS-2DE7A432IW-AEB 4MP PTZ Network Dome Camera from Hikvision uses a 1/1.8" progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 30 fps. IR LEDs provide up to 660' of night vision. A 5.9-188.8mm varifocal lens delivers a 50.8 to 2.6° horizontal field of view. The camera features endless panning, a -15 to 90° tilt range, and 32x optical zoom. Two-way audio is possible thanks to a built-in speaker, an audio input, and an audio output. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Compliance with ONVIF profiles G, S, and T enables interoperability with a wide range of surveillance devices. This PTZ camera is housed in an IP66- and IK10-rated (excluding glass window) enclosure that is suitable for outdoor use in areas at risk of vandalism. An integrated heater ensures that the camera will be operational in temperatures as low as -22°F.
| Camera | |
| Sensor | 4 MP 1/1.8" CMOS |
| Lens Mount | |
| Focal Length | 5.9 to 188.8mm |
| Maximum Aperture | f/1.5 |
| Zoom | Optical: 32x Digital: 16x |
| Lens Field of View | Horizontal: 50.8 to 2.6° Vertical: 29.4 to 1.5° Diagonal: 57.4 to 3° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.005 Lux B&W: 0 Lux |
| Shutter Speed | 1/30000 to 1 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2560 x 1440 at 30 fps (16.384 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC, G.711, G.722.1, G.726, MP2L2, PCM |
| Built-In Mic | |
| Built-In Speaker | Yes |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | Programmed Pan: 360° at 240°/s Programmed Tilt: 105° (-15 to 90°) at 200°/s |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection, Watermark |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T, ISAPI, SDK, ISUP |
| Analytics | Motion Detection, Video Tampering Alarm, Exception, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Audio Exception Detection, Smart Tracking (Auto & Manual), Face Capture, Perimeter Protection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 2 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | AC, PoE 802.3bt (60 W) |
| Power Consumption | AC: 42 W (With Heater) |
| Environmental | |
| Operating Temperature | -22 to 149°F / -30 to 65°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 90% (Non-Condensing) |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | IR LEDs up to 660' / 201.2 m |
| Video Management Software | iVMS-4200, HikCentral Pro, Hik-Connect |
| Supported Languages | |
| Certifications | |
| Material of Construction | Aluminum |
| Dimensions | �: 8.7 x H: 14.3" / �: 220.0 x H: 363.3 mm |
| Weight | 11 lb / 5 kg |
