Product Description

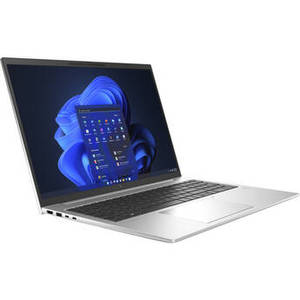

The 16" anti-glare IPS display features a WUXGA 1920 x 1200 native resolution that is equipped with a 16:10 aspect ratio, 1000 nits of brightness, and coverage for 100% of the sRGB color gamut. Integrated Intel Iris Xe graphics delivers a sharp, clear picture, and you'll be able to output video to an external display using the HDMI 2.0 output, as well as Thunderbolt 4, which supports DisplayPort 1.4. To help prevent side-angle viewing from onlookers, this display features Sure View privacy technology that produces a copper reflective finish when the screen is viewed from the side, making it appear unreadable.
For storage of your files, a 256GB PCIe M.2 NVMe PCIe SSD offers quick access to your data. If you want to add external storage drives or other peripherals, the EliteBook 860 G9 features two 40 Gb/s Thunderbolt 4 ports, plus two 5 Gb/s USB 3.2 Gen 1 Type-A ports, one of which doubles as a charging port. Wi-Fi 6E (802.11ax) is also built-in for wireless networking and Bluetooth 5.2 technology will allow you to connect additional compatible peripherals. Other features include an auto-tracking 5MP IR webcam for facial authentication with Windows Hello, dual mics, and stereo speakers with Bang & Olufsen HD audio.
The EliteBook 860 G9 Laptop includes a 65W USB Type-C power adapter. Windows 11 Pro (64-bit) is the installed operating system, although a Windows 10 Pro (64-bit) license is also included. Protection is provided by a limited 3-year parts & labor warranty.
| Operating System | Windows 11 Pro (64-Bit) |
| Performance | |
| CPU Architecture | x86 |
| Chipset | |
| Processor | Intel Core i7-1255U (12th Gen) |
| CPU Socket | |
| CPU | 4.7 GHz Performance Dual-Core 3.5 GHz Efficiency 8-Core |
| L3 Cache | 12 MB |
| Graphics Type | Integrated |
| GPU | Intel Iris Xe |
| Memory Type | 4800 MHz DDR5 |
| Total Installed Memory | 16 GB |
| Memory Configuration | 2 x 8 GB (User-Replaceable) |
| Maximum Memory Capacity | 64 GB |
| Memory Slot Type | 262-Pin SO-DIMM |
| Memory Slots | 2 (0 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| Display | |
| Panel Type | IPS-Type LCD |
| Size | 16" |
| Aspect Ratio | 16:10 |
| Resolution | 1920 x 1200 |
| Touchscreen | No |
| Finish | Anti-Glare / Matte |
| Maximum Brightness | 1000 cd/m2 |
| Color Gamut | 100% sRGB |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | |
| 2.5" Slots | |
| SSD Slots | |
| Total Installed Capacity | 256 GB |
| Solid State Storage | 1 x 256 GB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | |
| PCI Expansion in MPX Bays | |
| Expansion Slots | 1 x Smart Card |
| Optical Drive | None |
| I/O | |
| Ports | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) |
| USB Type-C | 2 x Thunderbolt 4 (Supports DisplayPort and Power Delivery) |
| Display | 1 x HDMI 2.0 |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | 2 |
| Built-In Microphones | 2 |
| Media/Memory Card Slot | None |
| Communications | |
| Ethernet | None |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.2 |
| GPS | None |
| NFC | Yes |
| Webcam | User-Facing: 5 MP |
| Battery | |
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
| Capacity | 3-Cell: 51 Wh |
| Keyboard & Mouse | |
| Keyboard | Notebook Keyboard with Number Pad, Touch Bar |
| Pointing Device | TouchPad |
| General | |
| Security | Dedicated Hardware TPM Security Chip, Facial Recognition, Fingerprint Reader, Kensington Lock Slot, Privacy Screen, Webcam Blocker |
| Power Supply | 65 W with USB Type-C |
| AC Input Power | |
| Operating Temperature | |
| Operating Humidity | |
| Certifications | ENERGY STAR, EPEAT, TCO Certified *as per Manufacturer |
| Mounting-Hole Pattern | |
| Dimensions | 14.12 x 9.88 x 0.76" / 35.86 x 25.1 x 1.93 cm |
| Weight | 3.87 lb / 1.76 kg |
