1302L 13" Class Full HD POS Touchscreen Display
Product Description

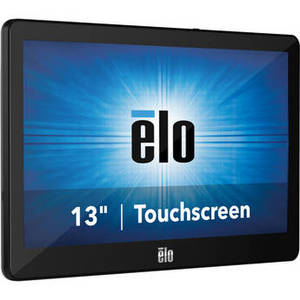

Add a touchscreen display to your point-of-sale or other installation with the Elo Touch 1302L 13" Class Full HD POS Touchscreen Display. It has a native resolution of 1920 x 1080 with a typical brightness rating of up to 270 cd/m² and a contrast ratio of 800:1 to help colors and text appear clear and legible in most installation settings. The display is equipped with HDMI, USB Type-C, and VGA inputs for integration with various systems. The USB Type-C port can be used for power, video, and touch signals to enable single-cable installation. The display features an IK07 impact resistance rating and the front panel has an IPX1 ingress protection rating.
| Display | |
| Screen Size (Diagonal) | 13.3" |
| Resolution | 1920 x 1080 |
| Supported Display Resolutions | Minimum: 640 x 480 / 60 Hz Maximum: 1920 x 1080 / 60 Hz |
| Panel Type | TFT LCD |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 270 cd/m� (Typical) |
| Viewing Angle (H x V) | 170 x 170° |
| Screen Area | 11.57 x 6.51" / 293.76 x 165.24 mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 800:1 |
| Dynamic Contrast Ratio | |
| Response Time | 25 ms |
| Refresh Rate | |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | |
| Pixels Per Inch (ppi) | |
| Pixel Clock Frequency | |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 1 x HDMI 1.3 Audio, Video 1 x VGA 15-Pin Video 1 x 1/8" / 3.5 mm Audio |
| USB Ports | 1 x Unspecified USB, USB-C - Video/Control/Power 1 x Unspecified USB, Micro-USB (Top) 1 x Unspecified USB, Micro-USB (Bottom) 2 x Unspecified USB, Micro-USB (Side) |
| Display Orientation | |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | |
| Surface | |
| Touchscreen Technology | Projected Capacitive |
| Multi-Touch Points | 10 |
| Surface Treatment | Anti-Glare |
| Audio | |
| Built-In Speakers | Yes, 2 x 1 W |
| Speaker Configuration | 2-Channel |
| Processing | |
| Processor | |
| CPU | |
| OS Compatibility | |
| Convenience | |
| Built-In Mic | |
| NFC | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Multi-Input Support (PIP/PBP) | |
| Supported Languages | English French German Italian Japanese Simplified Chinese Spanish Traditional Chinese |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Operational: 9.8 W Standby: 1.4 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 12 VDC |
| Power Adapter Type | |
| Apparent Power | |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 95% |
| Operating Altitude | |
| Storage Altitude | |
| Operating Shock | |
| Operating Vibration | |
| Certifications | FCC, UL *as per Manufacturer |
| Physical | |
| Wall Mounting | 75 x 75 mm |
| Material of Construction | |
| Audible Noise | |
| IP Rating | |
| IK Rating | IK07 |
| IR Sensor | |
| Glass Thickness | |
| Bezel Thickness | |
| Duty Cycle | |
| Dimensions | 8.3 x 12.8 x 1.0" / 211.3 x 326.1 x 25.1 mm |
| Stand Dimensions | |
| Weight | 2.69 lb / 1.22 kg |
