Product Description

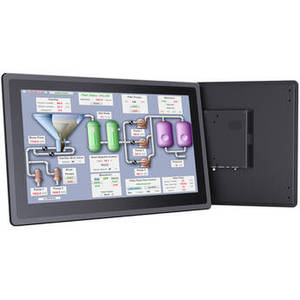

Bring easy visibility to industrial environments with the 15.6" TK1560/C Specialty Monitor from Lilliput. Featuring a metal construction and IP64 dust and water resistance, this monitor is optimized for industrial applications. The 15.6" LCD panel features 160° viewing angles, a 1000:1 static contrast ratio, and 1000 cd/m² of brightness for accurate views. Connect to video sources via HDMI, VGA, and RCA composite inputs; integrated speakers provide onboard audio, while a 3.5mm aux port can be used to connect headphones. VESA 75 x 75 and 100 x 100mm mounting patterns allow this monitor to be used with compatible third-party mounts or stands for versatile deployment.
| Display | |
| Screen Size (Diagonal) | 15.6" |
| Resolution | 1920 x 1080 |
| Supported Display Resolutions | Maximum: 3840 x 2160 / 30 Hz |
| Panel Type | LCD |
| Bit Depth / Color Support | |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 1000 cd/m� |
| Viewing Angle (H x V) | 160 x 160° |
| Screen Area | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Dynamic Contrast Ratio | |
| Response Time | |
| Refresh Rate | |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | |
| Pixels Per Inch (ppi) | |
| Pixel Clock Frequency | |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 1 x HDMI 1.4 – Audio, Video (Bottom) 1 x VGA 15-Pin – Video (Bottom) 1 x RCA Composite – Video (Bottom) 1 x 1/8" / 3.5 mm – Audio (Bottom) |
| Output Ports | 1 x 1/8" / 3.5 mm – Headphone (Bottom) |
| Ethernet Ports | None |
| Digital Media Slot | None |
| Display Orientation | |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | |
| Audio | |
| Built-In Speakers | Yes |
| Processing | |
| Built-In Mic | |
| NFC | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Multi-Input Support (PIP/PBP) | |
| Supported Languages | |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Maximum: < 24.5 W |
| DC Input Power | 12 to 24 VDC |
| Power Adapter Type | Internal |
| Apparent Power | |
| Environmental | |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| Operating Shock | |
| Operating Vibration | |
| Physical | |
| Wall Mounting | 75 x 75 mm 100 x 100 mm |
| Material of Construction | Metal |
| Audible Noise | |
| IP Rating | IP64 |
| IK Rating | |
| IR Sensor | |
| Glass Thickness | |
| Bezel Thickness | |
| Duty Cycle | |
| Dimensions | 16.1 x 10.2 x 1.4" / 408.0 x 259.0 x 36.5 mm |
| Weight | 6.4 lb / 2.9 kg |
