Product Description

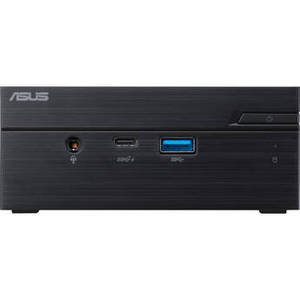

Streamline your business' productivity and simplify your workflow with the flexibility of the ASUS PN51-S1 Mini Desktop Computer. Designed for businesses, the PN51 is a barebones computer that is easily upgradable and allows you to choose your RAM capacity and storage format, allowing you to scale performance to your professional needs. The PN51-S1 comes pre-installed with a Ryzen 7 5700U processor, giving you a powerful foundation for the rest of your system. Multitask with ease with two DDR4 SO-DIMM slots, allowing you to install two 3200 MHz memory modules with a total memory capacity of 64GB. Featuring a 2.5" bay and M.2 interface, users can install a single SATA and a single PCIe-based drive. Further expand your productivity with a multi-display setup thanks to the HDMI 1.4 and DisplayPort, and DisplayPort 1.4 over USB Type-C outputs, supported with integrated AMD Radeon Graphics for clear and color-accurate images. Connect external peripherals with the USB 3.2 Gen 1 Type-A ports and USB 3.2 Gen 1 Type-C ports. Wireless peripherals can be connected thanks to Bluetooth 5.2 technology. Wi-Fi 6 wireless networking enables you to connect to your business' wireless network, or use the integrated 2.5 GbE RJ45 port for a stable and high-speed wired connection.
| Operating System | None |
| Performance | |
| CPU Architecture | x86 |
| Chipset | |
| Processor | AMD Ryzen 7 5700U |
| CPU Socket | AM4 |
| CPU | 1.8 to 4.3 GHz 8-Core |
| L3 Cache | 8 MB |
| Graphics Type | Integrated |
| GPU | AMD Radeon |
| Memory Type | 3200 MHz DDR4 |
| Total Installed Memory | None |
| Memory Configuration | 0 x 0 GB (Onboard) |
| Maximum Memory Capacity | 64 GB |
| Memory Slot Type | 260-Pin SO-DIMM |
| Memory Slots | 4 (4 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| Panel Type | |
| Size | |
| Aspect Ratio | |
| Resolution | |
| Touchscreen | |
| Finish | |
| Maximum Brightness | |
| Color Gamut | |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | 1 x 2.5" (Internal) |
| 2.5" Slots | |
| SSD Slots | 1 x M.2 2280 SATA / PCIe (Unspecified Interface) (Available) |
| Total Installed Capacity | None |
| Solid State Storage | |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | None |
| PCI Expansion in MPX Bays | |
| Optical Drive | None |
| I/O | |
| Ports | 3 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) |
| USB Type-C | 1 x USB 3.1 / USB 3.2 Gen 1 1 x USB 3.1 / USB 3.2 Gen 1 (Supports DisplayPort and Power Delivery) |
| Display | 1 x HDMI 1.4 Output 1 x DisplayPort |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone/Line Input/Output |
| Built-In Speakers | None |
| Built-In Microphones | None |
| Media/Memory Card Slot | None |
| Communications | |
| Ethernet | 1 x RJ45 (2.5GbE) |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.2 |
| SIM Card Size | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| GPS | None |
| NFC | No |
| Webcam | |
| Battery Chemistry | |
| Capacity | |
| Estimated Battery Life | |
| Keyboard & Mouse | |
| Keyboard | None |
| Pointing Device | None |
| General | |
| Security | Dedicated Hardware TPM Security Chip |
| Power Supply | 90 W with Barrel/Proprietary |
| AC Input Power | 120 to 240 VAC, 50 / 60 Hz |
| Operating Temperature | |
| Operating Humidity | |
| Mounting-Hole Pattern | |
| Dimensions | 4.5 x 4.5 x 1.93" / 11.4 x 11.4 x 4.9 cm |
| Weight | 1.5 lb / 0.7 kg |
