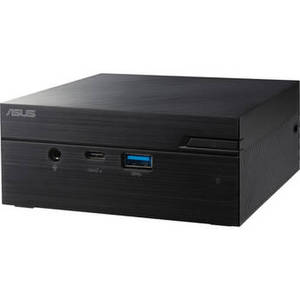

PN41 Fanless Mini Desktop Computer (Barebone)
Product Description
At the heart of this barebones system is an Intel Celeron N5100 4-core processor, giving you a strong foundation for the rest of your system. Experience enhanced multitasking with two DDR4 SO-DIMM RAM slots, allowing you to install two memory modules up to a total of 64GB. With a 2.5" bay and an M.2 interface, you can install a single SATA and one PCIe-based drive, respectively. Expand your productivity with multi-display support provided by the HDMI 2.0 and DisplayPort 1.4 over USB Type-C outputs backed by integrated Intel HD graphics for clear images while you work, take part in team meetings, or display images for digital signage. Connect your external peripherals with USB 3.2 Gen 1 Type-A ports and USB 3.2 Gen 2 Type-C ports, offering expansive connectivity options. Bluetooth 5.1 technology allows you to connect wireless peripherals such as keyboards, mice, and headphones. Wi-Fi 5 (802.11ac) networking allows you to connect to your business' wireless network, or use the two integrated Gigabit Ethernet ports for a wired connection.
| Operating System | None |
| Performance | |
| CPU Architecture | x86 |
| Chipset | |
| Processor | Intel Celeron N5100 |
| CPU Socket | |
| CPU | 1.1 to 2.8 GHz Quad-Core |
| L3 Cache | 4 MB |
| Graphics Type | Integrated |
| GPU | Intel HD Graphics |
| Memory Type | 2933 MHz DDR4 |
| Total Installed Memory | None |
| Memory Configuration | 0 x 0 GB (User-Replaceable) |
| Maximum Memory Capacity | |
| Memory Slot Type | 262-Pin SO-DIMM |
| Memory Slots | 4 (4 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| Panel Type | |
| Size | |
| Aspect Ratio | |
| Resolution | |
| Touchscreen | |
| Finish | |
| Maximum Brightness | |
| Color Gamut | |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | 1 x 2.5" (Internal) |
| 2.5" Slots | |
| SSD Slots | 1 x M.2 2280 PCIe (Unspecified Interface) |
| Total Installed Capacity | None |
| Solid State Storage | |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | None |
| PCI Expansion in MPX Bays | |
| Optical Drive | None |
| I/O | |
| Ports | 3 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) |
| USB Type-C | 1 x USB 3.1 / USB 3.2 Gen 2 (Supports Power Delivery) 1 x USB 3.1 / USB 3.2 Gen 1 (Supports DisplayPort and Power Delivery) |
| Display | 1 x HDMI |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | None |
| Built-In Microphones | None |
| Media/Memory Card Slot | None |
| Communications | |
| Ethernet | 2 x RJ45 (2.5GbE) |
| Wi-Fi | Wi-Fi 5 (802.11ac) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.1 |
| SIM Card Size | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| GPS | |
| NFC | No |
| Webcam | |
| Battery Chemistry | |
| Capacity | |
| Estimated Battery Life | |
| Keyboard & Mouse | |
| Keyboard | None |
| Pointing Device | None |
| General | |
| Security | Kensington Lock Slot |
| Power Supply | 65 W with Barrel/Proprietary |
| AC Input Power | |
| Operating Temperature | |
| Operating Humidity | |
| Mounting-Hole Pattern | |
| Dimensions | 4.5 x 4.5 x 1.9" / 114.3 x 114.3 x 48.3 mm |
| Weight | 1.54 lb / 0.7 kg |
