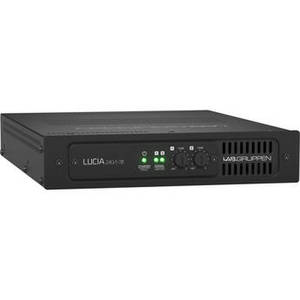

LUCIA 60/1-70 Compact Mono Amplifier for High-Impedance 70V Installations (1 x 60W)
Product Description
System installers in search of a compact, high-quality amplifier that's designed for high-impedance 70V applications should check out the Lab.Gruppen LUCIA 60/1-70, a 1/2 RU sized, single-channel 60W amplifier for A/V installation applications. Localized Utility Compact Intelligent Amplification (LUCIA) offers advanced audio performance and flexibility to a decentralized approach in AV systems design. Power, processing, control, and I/O are conveniently placed exactly where they are needed. In many AV applications requiring consistent performance, LUCIA offers a logical, cost-efficient, and scalable solution that often eliminates the complications and added expense of a centralized equipment room.
The half-rack space enclosure provides fast and easy installation. The supplied wall-mount bracket allows for deployment in discrete locations, such as behind video displays or next to a projector or podium. The Lab.Gruppen LUCIA 60/1-70 includes Euroblock input and output screw terminals, a power cord, and mounting hardware.
| Amplifier | |
| Form Factor/Type | |
| Number of Channels | 1 |
| Number of Channels | |
| Number of Zones | |
| Power Rating | 70 V: 60 W Peak 100 V: 30 W Peak 16 Ohms: 60 W |
| Amplifier Class | Class-D |
| Load Impedance / Voltage | 70 / 100 V 16 Ohms |
| Performance | |
| Protections | Short Circuit, Thermal, Undervoltage |
| Frequency Response | |
| Damping Factor | |
| Input Sensitivity | 1.23 Vrms / 4 dBu (Balanced) 0.62 Vrms / -2 dBu (Unbalanced) |
| Input Impedance | |
| I/O Impedance | |
| Max Gain | |
| Max Input Level | |
| Input Level | Block: 12 dBu / 3.09 Vrms (Balanced) RCA: 6 dBu / 1.55 Vrms (Unbalanced) |
| Input Gain/Trim Range | |
| Headroom | |
| Output Level | |
| VCA Control | |
| Max Voltage Swing | |
| Insertion Loss | |
| Dynamic Range | |
| SNR | > 100 dBA |
| SNR | |
| Noise | |
| EIN | |
| THD | |
| THD+N | |
| Distortion | |
| Intermodulation Distortion | |
| Crosstalk | |
| Slew Rate | |
| CMRR | |
| CMRR | |
| Signal Processing | |
| Sample Rate | |
| AD/DA Conversion | |
| DSP | |
| Latency | |
| Audio Delay | Adjustable Up to 137 ms |
| Crossover | Yes |
| EQ | |
| Filters | High-Pass: 50 Hz / 80 Hz |
| Ducking/Muting | |
| Compressor | |
| Limiting | Yes |
| Connectivity | |
| I/O | 1 x Block 6-Pin Balanced Line Input 2 x RCA TS Female Unbalanced Line Input 1 x Block 2-Pin Speaker Output 1 x Block 6-Pin Balanced GPIO Output |
| Audio I/O | |
| Digital I/O | |
| Digital Audio I/O | |
| Network I/O | |
| Other I/O | |
| Speaker Outputs | |
| Number of Module Slots | |
| USB | 1 x Mini-USB (Service) |
| Phantom Power | |
| Bluetooth | |
| Bluetooth Profiles | |
| Bluetooth Range | |
| Media/Memory Card Slot | |
| Power | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| AC Power Connector | 1 x IEC 15 A / NEMA 5-15 |
| DC Input Power | |
| Current Consumption | |
| Power Consumption | 1 W (Standby) |
| AC Outlet | |
| Physical | |
| Display & Indicators | |
| Rackmount Size | 1 RU (1/2-Rack) |
| Cooling | Fan (Variable Speed) |
| Thermal Dissipation | |
| Certifications | CCC, CE, CSA, ENERGY STAR, FCC, PSE *as per Manufacturer |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Dimensions | 8.5 x 1.7 x 11.0" / 215.9 x 43.2 x 279.4 mm |
| Weight | 4.2 lb / 1.9 kg |
