Product Description
For storage of your files, the Elite 800 G9 is equipped with a 512GB NVMe PCIe M.2 SSD, plus an empty PCIe 4.0 x4 slot and a 2.5" bay for additional internal storage. If you want to connect with external storage drives or other peripherals, options include 20 Gb/s USB 3.2 Gen 2x2 Type-C and 10 Gb/s USB 3.2 Gen 2 Type-A. The integrated Intel UHD Graphics 770 chipset delivers a sharp, clear picture while allowing for a wide range of monitors to be used via its three DisplayPort 1.4a and one HDMI 2.1 outputs. Whether you are listening to music, watching a movie, or playing a game, the Realtek ALC3252 codec outputs high-definition audio and delivers higher fidelity than standard audio controllers. Connect to your network using wired Gigabit Ethernet, or take advantage of Wi-Fi 6E (802.11ax) to connect wirelessly. Wireless peripherals may also be connected using Bluetooth 5.2, which helps free up USB ports for wired devices.

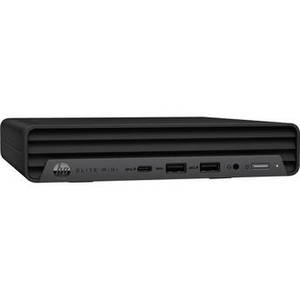

The Elite 800 G9 Mini Desktop Computer includes an HP Wired Desktop 320K keyboard, an HP USB optical mouse, a 90W external power supply, and a 6' power cord. The installed operating system is Windows 11 Pro (64-bit) and also included is a free license to downgrade to Windows 10 Pro (64-bit).
| Operating System | Windows 11 Pro (64-Bit) |
| Performance | |
| CPU Architecture | x86 |
| Chipset | Intel Q670 |
| Processor | Intel Core i7-12700T (12th Gen) |
| CPU Socket | LGA 1700 |
| CPU | 1.4 to 4.7 GHz 12-Core |
| L3 Cache | 25 MB |
| Graphics Type | Integrated |
| GPU | Intel UHD Graphics 770 |
| Memory Type | 4800 MHz DDR5 |
| Total Installed Memory | 16 GB |
| Memory Configuration | 1 x 16 GB (User-Replaceable) |
| Maximum Memory Capacity | 64 GB |
| Memory Slot Type | 262-Pin SO-DIMM |
| Memory Slots | 2 (1 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| vPro Support | |
| Display | |
| Panel Type | |
| Size | |
| Aspect Ratio | |
| Resolution | |
| Touchscreen | |
| Finish | |
| Maximum Brightness | |
| Color Gamut | |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | 1 x 2.5" (Internal) |
| 2.5" Slots | |
| SSD Slots | 1 x M.2 2280 PCIe 4.0 x4 (In Use) 1 x M.2 2280 PCIe 4.0 x4 (Available) |
| Total Installed Capacity | 512 GB |
| Solid State Storage | 1 x 512 GB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | 1 x M.2 2230 (E-Key) (In Use) |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | None |
| I/O | |
| Ports | 5 x USB-A (USB 3.1/3.2 Gen 2) |
| USB Type-C | 1 x USB 3.2 Gen 2x2 |
| Display | 3 x DisplayPort 1.4a Output 1 x HDMI 2.1 Output |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone/Line Input/Output |
| Built-In Speakers | 1 x 2 W |
| Built-In Microphones | None |
| Media/Memory Card Slot | None |
| Communications | |
| Ethernet | 1 x RJ45 (Gigabit) |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.2 |
| SIM Card Size | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| GPS | |
| NFC | No |
| Webcam | |
| Battery | |
| Battery Chemistry | |
| Capacity | |
| Estimated Battery Life | |
| Keyboard & Mouse | |
| Keyboard | USB Full-Size Keyboard with Number Pad |
| Pointing Device | USB Mouse |
| General | |
| Security | Dedicated Hardware TPM Security Chip, Accepts 3rd Party Security Lock Devices |
| Power Supply | 90 W with Barrel/Proprietary |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.7 A |
| Operating Temperature | 50 to 95°F / 10 to 35°C |
| Operating Humidity | 10 to 90% (Non-Condensing) |
| Certifications | ENERGY STAR, EPEATGOLD *as per Manufacturer |
| Mounting-Hole Pattern | |
| Dimensions | 6.97 x 6.89 x 1.35" / 177.04 x 175.01 x 34.29 mm |
| Weight | 3.13 lb / 1.42 kg |
