Product Description

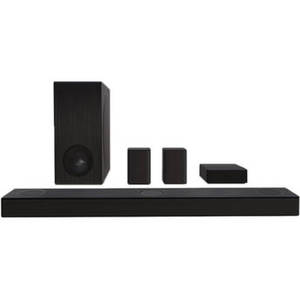

Enjoy an immersive soundstage and boosted dialogue with the LG S80QR 620W 5.1.2-Channel Soundbar System. It features an up-firing center speaker designed to complement the standard front-firing center channel to help bring out subtle vocal sounds amid ambient audio and sound effects. Dual up-firing channels add height effects to Dolby Atmos and DTS:X content.
The rear speakers connect with included speaker wire to the rear speaker receiver, which wirelessly receives audio from the rest of the soundbar system. The system connects to your TV via a single HDMI or optical cable and supports 4K UHD as well as HDR10 and Dolby Vision pass-through.
| Soundbar | |
| Channel Configuration | 5.1.2-Channel |
| Enclosure Type | |
| Passive Radiators | |
| Low-Frequency Drivers | |
| Midrange Drivers | |
| High-Frequency Drivers | |
| Full-Range Drivers | |
| Amplification | |
| Amplifier Output | 260 W |
| Crossover | |
| Frequency Response | |
| Impedance | |
| Maximum SPL | |
| SNR (Signal-to-Noise Ratio) | |
| Total Harmonic Distortion (THD) | |
| Sensitivity | |
| Satellite Speakers | |
| Speaker Positioning | Rear |
| Speaker Configuration | Full-Range |
| Full-Range Drivers | 1 x per Speaker |
| Power Rating | 70 W per Speaker |
| Satellite Connectivity | Spring Clip Pair - Audio/Wireless Module |
| Placement & Mounting Options | Tabletop/Bookshelf |
| Subwoofer | |
| Enclosure Type | Bass-Reflex |
| Drivers | |
| Passive Radiators | |
| Amplifier Output | 220 W |
| Amplifier Class | |
| Frequency Response | |
| Impedance | |
| Maximum SPL | |
| Total Harmonic Distortion (THD) | |
| Subwoofer Connectivity | Wireless |
| Connectivity | |
| Inputs | 1 x HDMI - Audio/Video 1 x Optical TOSLINK - Audio |
| Outputs | 1 x HDMI - ARC/eARC/Audio/Video |
| USB I/O | 1 x USB-A (Unspecified Interface) (Audio) |
| Ethernet | None |
| Control | |
| Wireless Audio Protocols | AirPlay 2, Bluetooth, Chromecast built-in, Spotify Connect |
| Bluetooth | 5.0 |
| NFC | No |
| Bluetooth Profiles | |
| Bluetooth Codec Support | AAC SBC |
| Bluetooth Frequency Response | |
| Bluetooth Range | |
| Wi-Fi | Yes |
| Compatibility | |
| Audio Decoding | DTS Digital Surround, DTS-HD High-Resolution, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, LPCM |
| Sampling Frequencies | Up to 96 kHz |
| HDMI Compliance | ARC, CEC, eARC |
| HDR Compatibility | HDR10, Dolby Vision |
| HDCP Compliance | HDCP 2.3 |
| Supported File Formats | AAC, FLAC, LPCM, MP3, OGG, WAV |
| Supported File Systems | |
| Supported Languages | |
| Power | |
| Power Consumption | 59 W (Soundbar) 40 W (Subwoofer) < 0.5 W (Soundbar, Standby) < 0.5 W (Subwoofer, Standby) |
| AC Input Power | |
| DC Input Power | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Storage Humidity | |
| Physical | |
| IP Rating | |
| Material of Construction | |
| Wall Mountable | Yes, with Included Hardware |
| Soundbase Load Capacity | |
| Recommended Screen Size | 55" and Up |
| Dimensions | 39.4 x 2.5 x 5.3" / 100.1 x 6.3 x 13.5 cm (Soundbar) 3.9 x 5.5 x 3.9" / 9.9 x 14 x 9.9 cm (Satellites) 7.9 x 16 x 15.9" / 20.1 x 40.6 x 40.4 cm (Subwoofer) |
| Weight | 9.9 lb / 4.5 kg (Soundbar) 22.1 lb / 10 kg (Subwoofer) |
