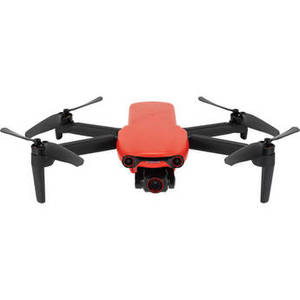

EVO Nano+ Drone (Premium, Blazing Red)
Product Description
With a foldable design and weighing only 8.8 oz, the standard version of the red EVO Nano+ Drone is a go-anywhere, fit-anywhere solution that lets you easily take to the skies to capture pro-quality aerial images and video. The Nano+ does this through a 1/1.28" CMOS sensor inside a 3-axis gimbal for images up to 50MP and videos up to 4K30p Ultra HD quality. Thanks to a dual PDAF+CDAF autofocusing system, large aperture, and RYYB color filter array, the camera can more easily keep fast moving objects in focus and deliver low-light content with minimal noise.
The Nano+ has been designed to make it easy to capture cinematic content with four automatic shooting modes, automatic subject tracking, and a suite of video templates in the Autel Sky app. Even with all of this automation to make piloting easy, you're still in control with the included remote and Skylink, which transmits what the drone sees at a stunning 2.7K30p resolution from up to 6.2 miles away. With up to 28 minutes of flight time, you can stay at a safe distance while capturing beautiful aerial footage of remote locations.
The Nano+ has been designed to make it easy to capture cinematic content with four automatic shooting modes, automatic subject tracking, and a suite of video templates in the Autel Sky app. Even with all of this automation to make piloting easy, you're still in control with the included remote and Skylink, which transmits what the drone sees at a stunning 2.7K30p resolution from up to 6.2 miles away. With up to 28 minutes of flight time, you can stay at a safe distance while capturing beautiful aerial footage of remote locations.
| Performance | |
| Maximum Takeoff Weight | 8.8 oz / 249 g |
| Payload Capacity | |
| Maximum Horizontal Speed | 33.6 mph / 15 m/s |
| Maximum Ascent Speed | 13.4 mph / 6 m/s |
| Maximum Descent Speed | |
| Maximum Wind Resistance | |
| Flight Ceiling | 2.5 Miles / 4000 m |
| Maximum Flight Time | 28 Minutes |
| Maximum Hover Time | 26 Minutes |
| Maximum Tilt Angle | 33° |
| Hovering Accuracy | ±1.0' / 0.3 m Horizontal with Vision Positioning ±4.9' / 1.5 m Horizontal with GPS ±0.3' / 0.1 m Vertical with Vision Positioning ±1.6' / 0.5 m Vertical with GPS |
| Maximum Angular Velocity | 200°/s (Pitch) |
| Camera | |
| Sensor Type | 1/1.28"-Type CMOS Sensor |
| Sensor Resolution | Effective: 50 Megapixel (8192 x 6144) |
| Focal Length | 23mm (35mm Equivalent) |
| Field of View | 85° |
| Maximum Aperture | f/1.9 |
| Minimum Aperture | |
| Minimum Focus Distance | 1.6' / 0.5 m |
| ISO Sensitivity | Photo/Video 100 to 6400 |
| Shutter Speed | Electronic Shutter 1/8000 to 8 Seconds |
| Video Format | 3840 x 2160p at 24/25/30 fps (100 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC) 2720 x 1528p at 24/25/30 fps (100 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC) 1920 x 1080p at 24/25/30/48/50/60 fps (100 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC) |
| Broadcast Resolution | None |
| Still Image Support | DNG / JPEG 50 MP (8192 x 6144) 12.5 MP (4096 x 3072) (3840 x 2160) |
| Internal Storage | |
| USB | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Photo Modes | Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot |
| Second Camera | |
| Gimbal | |
| Number of Axes | 3 (Pitch, Roll, Yaw) |
| Control Range | Pitch: -90 to 0° |
| Angular Speed | Pitch: 30°/s |
| Control Accuracy | ±0.003° |
| Flight Control System | |
| Model | |
| GNSS Support | GPS, GLONASS, Galileo |
| 3D Object Detection | |
| Operating Range | Not Specified by Manufacturer |
| Minimum Object Size | |
| Required Object Reflectivity | |
| Vision System | |
| Vision System | Downward, Forward, Backward |
| Velocity Range | |
| Maximum Altitude | |
| Operating Range | 1.6 to 65.6' / 0.5 to 20.0 m |
| Obstacle Sensory Range | |
| Forward Field of View | 40° (Horizontal) 30° (Vertical) |
| Downward Field of View | 40° (Side to Side) |
| Backward Field of View | 40° (Horizontal) 30° (Vertical) |
| Measuring Frequency | |
| Operating Environment | Surface with Clear Patterns at >15 lux |
| Infrared Sensing System | |
| Obstacle Sensory Range | |
| Field of View | |
| Measuring Frequency | |
| Required Object Reflectivity | |
| Remote Controller / Transmitter | |
| Operating Frequency | 2.4 GHz (2.400 to 2.484) 5.8 GHz (5.725 to 5.850) |
| Maximum Operating Distance | 6.2 Miles / 10.0 km |
| Transmitter Power | 30 dBm (2.4 G) 30 dBm (5.8 G) |
| Connectivity | 1 x USB-C |
| Output Power | |
| USB Output Power | |
| Battery Type | |
| Battery Chemistry | |
| Battery Capacity | 3930 mAh |
| Battery Configuration | |
| Mobile Device Compatibility | |
| App Compatible | Yes: Android & iOS |
| Built-In Display Size | |
| Display Resolution | |
| Display Brightness | |
| Storage Temperature | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Charging Temperature | |
| Flight Battery | |
| Model | |
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
| Battery Capacity | 2250 mAh |
| Battery Configuration | 2 S / 7.7 V |
| Maximum Charging Power | 30 W |
| Operating Temperature | |
| Charging Temperature | 41 to 113°F / 5 to 45°C |
| Storage Temperature | |
| Weight | |
| Charger | |
| Model | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | |
| Output Voltage | 5 V, 3 A 9 V, 3 A 12 V, 2.5 A |
| Power Rating | 30 W |
| Motor | |
| Model | |
| Type | |
| Velocity Constant | |
| Propeller | |
| Model | |
| Size | |
| Attachment Type | |
| General | |
| Encryption | |
| Certifications | |
| Rotor Configuration | 4 |
| Operating Temperature | 22 to 72°F / -10 to 40°C |
| Diagonal Size | 9.1" / 231 mm |
| Overall Dimensions | 5.6 x 3.7 x 2.2" / 142.0 x 94.0 x 55.0 mm (Folded) 10.2 x 12.8 x 2.2" / 260.0 x 325.0 x 55.0 mm (Unfolded) |
| Weight |
