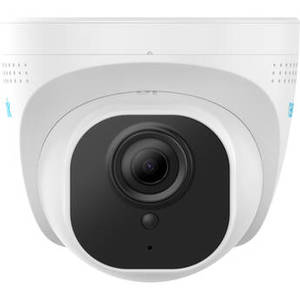

RLC-520A 5MP Outdoor Network Dome Camera with Night Vision
Product Description
Monitor an indoor or outdoor area with the RLC-520A 5MP Network Dome Camera from Reolink. This unit uses a 1/2.7" CMOS sensor to capture 2560 x 1920 resolution video at 30 fps. Eighteen IR LEDs provide up to 100' of night vision. The camera's 4mm fixed lens delivers an 80° horizontal field of view. Audio recording is possible thanks to a built-in microphone. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profile T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-rated enclosure that is suitable for outdoor use.
| Camera | |
| Sensor | 5 MP 1/2.7" CMOS |
| Lens Mount | |
| Focal Length | 4mm |
| Maximum Aperture | f/2 |
| Zoom | |
| Lens Field of View | Horizontal: 80° Vertical: 42° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | B&W: 0 Lux |
| Shutter Speed | |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2560 x 1920 at 30 fps (8.192 Mb/s ) |
| Supported Video Compression | H.264 |
| Multi-View Streaming | Yes, 2 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS |
| Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, P2P, RTMP, RTSP, SMTP, SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profile T |
| Analytics | Motion, Person & Vehicle Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of February, 2022: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 12 W |
| Environmental | |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 10 to 90% |
| IP Rating | IP66 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 18 x 850 nm IR LEDs up to 100' / 30.5 m |
| Video Management Software | |
| Supported Languages | |
| Certifications | |
| Material of Construction | |
| Dimensions | �: 4.1 x H: 3.7" / �: 105.0 x H: 95.0 mm |
| Weight | 1 lb / 467.5 g |
