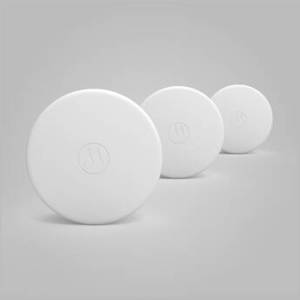

MH7603 AX1800 Wireless Dual-Band Gigabit Mesh Wi-Fi Kit (White, 3-Pack)

Product Description
Enjoy smooth 4K video streaming, online gaming, and web browsing experiences with the white Motorola MH7603 AX1800 Wireless Dual-Band Gigabit Mesh Wi-Fi Kit helping to blanket your home with reliable high-speed Wi-Fi connections. Comprised of three modules, any of which can be configured to operate as a router or satellite, this 802.11ax mesh Wi-Fi kit has a maximum throughput of 1774 Mb/s with compatible devices over the 2.4 GHz and 5 GHz wireless bands, covering up to 5000 square feet. Designate one module as the router by connecting your compatible cable/DSL modem to its Gigabit Ethernet WAN port. As a satellite, both Gigabit Ethernet ports can be used to connect wired devices such as computers, smart TVs, and video game consoles.
Mesh networks conveniently operate using a single network ID (SSID), providing you with an uninterrupted experience as you watch videos, play games, and browse the internet while moving from room to room. Intelligent band steering technology automatically switches your devices to the least congested band so that you'll always have the fastest connection. Your wireless network is protected with WPA2 encryption and a built-in firewall. Use the Motosync app to quickly setup, manage, and monitor your network.
| Number of Units | 3 |
| Connectivity | |
| Wi-Fi | Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) |
| Inputs/Outputs | Each Unit: 1 x RJ45 Gigabit Ethernet (LAN) 1 x RJ45 Gigabit Ethernet (WAN/LAN) |
| Number of Antennas | Each Unit: 2 x Internal |
| MU-MIMO Support | 2 x 2 |
| Beamforming Support | Yes |
| Wireless Security | AES, TKIP, WPA, WPA2 |
| Bluetooth | None |
| Communication Protocol | |
| Virtual Assistant Support | None |
| General | |
| Throughput | 1774 Mb/s Total 5 GHz: 1200 Mb/s 2.4 GHz: 574 Mb/s |
| Transmit Power | 30 dBm |
| Antenna Gain | |
| Guest Network Support | Yes |
| Max SSIDs Supported | |
| Mobile Operating System Support | Android iOS |
| Operation Modes | Access Point, Mesh, Wireless Router |
| Supported IEEE Standards | 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n |
| Supported Protocols | |
| Hardware | |
| Memory | |
| Flash Memory | |
| Speakers | None |
| Built-In Microphones | None |
| Display | None |
| Electrical | |
| AC Input Power | |
| DC Input Power | 5 VDC |
| Power Consumption | |
| Operating Temperature | |
| Operating Humidity | |
| Storage Temperature | |
| Storage Humidity | |
| Physical | |
| IP Rating | None |
| Material of Construction | |
| Dimensions | 5.0 x 2.6 x 5.0" / 12.7 x 6.6 x 12.7 cm (Each Unit) |
| Weight | 10.6 oz / 301 g (Each Unit) |
