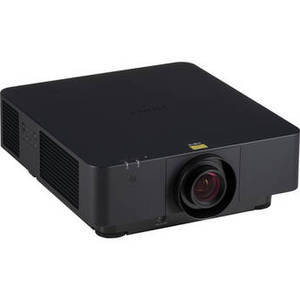

VPL-FHZ80 6000-Lumen WUXGA Laser 3LCD (Black)
Product Description
The VPL-FHZ80 6000-Lumen WUXGA Laser 3LCD from Sony features Bright View technology, which is designed to eliminate washed-out colors in strongly lit rooms. Newly improved Reality Creation ensures images, diagrams, and text look clear and sharp, even in bright conditions. Intelligent Settings with Ambiance match projected images with your environment for an enhanced viewing experience: there's even an ambient light sensor to measure room brightness.
| Image Display | |
| Display System | 3-Chip 0.76" LCD |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | Minimum: VGA - 640 x 480 @ 60 Hz Maximum: 4K UHD - 4096 x 2160 @ 24/25 Hz |
| Maximum Brightness | White: 6000 Lumens Color: 6000 Lumens 6500 Lumens (Center) |
| Aspect Ratio | Native: 16:10 |
| Scan | Horizontal: 15 to 93 kHz Vertical: 23 to 63 Hz |
| Lens | |
| Focus | Manual Powered |
| Lens Shift | Vertical: -5 to 70% Horizontal: -32 to 32% |
| Optical Zoom | Powered: 1.6x |
| Throw Ratio | 1.39 to 2.23:1 |
| Projection Size | 40 - 600" / 1.0 - 15.2 m |
| Features | |
| Keystone Correction | Horizontal: ± 30° Vertical: ± 30° |
| Supported HDR Input Formats | None |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Ceiling Mountable | Yes |
| Projection Tilt Option | No |
| Remote | None |
| Input/Output Connectors | |
| Inputs/Outputs | 1 x HDMI Audio, Video Input 1 x DE-15/DB-15 Video Input 1 x DVI-D Video Input 1 x 1/8" / 3.5 mm Mini Audio Input 1 x RJ45 (HDBaseT) Audio, Control, LAN, Video Input 1 x BNC Video Input 1 x DE-15/DB-15 (VGA) Video Output 1 x DVI-D Video Output 1 x 1/8" / 3.5 mm Mini Audio Output 1 x DE-9/DB-9 (RS-232) Control Input 1 x RJ45 (Ethernet) LAN Input/Output 1 x 1/8" / 3.5 mm Mini Control Input 1 x USB-A Data, Power Input/Output |
| Hardware | |
| App Compatible | No *As of November, 2023: Check with manufacturer for the most up-to-date compatibility |
| General | |
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours Medium Brightness: 30,000 Hours |
| Fan Noise | Full Brightness: 36 dB Medium Brightness: 34 dB |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.2 to 5.1 A |
| Heat Dissipation | Medium Brightness: 1355 BTU (AC 100 to 120V) Medium Brightness: 1290 BTU (AC 220 to 240V) |
| Power Consumption | Full Brightness: 397 W Medium Brightness: 288 W Standby Mode (Lamp Off): 0.5 W |
| Certifications | |
| Operating Altitude | |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% (Non-Condensing) |
| Storage Humidity | 20 to 80% (Non-Condensing) |
| Dimensions (W x H x D) | 18.1 x 6.7 x 19.4" / 460.0 x 169.0 x 494.0 mm Without Protrusions |
| Weight | 28.7 lb / 13 kg |
