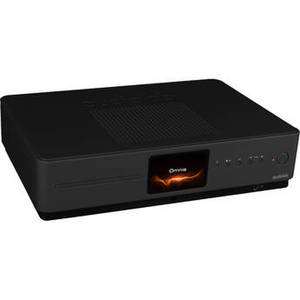

Omnia Stereo 100W Network Amplifier and CD Player (Black)
Product Description
Stream audio from your favorite services and source devices and enjoy enhanced stereo sound and CD playback with your favorite pair of speakers and the black Audiolab Omnia Stereo 100W Network Amplifier and CD Player. It outputs up to 50W per channel at 8 ohms and features Bluetooth and Wi-Fi connectivity in addition to its two digital coaxial, two optical, and three stereo RCA inputs. A dedicated phono MM input is also onboard, accompanied by a ground screw terminal. Another dedicated input lets you connect the Omnia to your hi-fi system's power amp.
A 1/4" headphone jack on the front enables private listening, and DTS Play-Fi compatibility lets you stream audio to compatible speakers and systems throughout the house. The built-in CD player is compatible with CD-R and CD-RW discs. A dedicated USB Type-B port connects your computer directly to the onboard DAC, and a USB Type-A port supports playback directly from your HDD.
| Amplifier | |
| Amplifier Type | Integrated Amplifier (Preamp/Power Amp Combo) |
| Channels | 2.0 |
| Number of Subwoofer Channels | |
| Amplifier Class | Class-AB |
| Power Output per Channel | 50 W at 8 Ohms 75 W at 4 Ohms |
| Dynamic Power per Channel | |
| Frequency Response | 20 Hz to 20 kHz �0.1 dB |
| THD+N | |
| THD | < 0.0004% (1 kHz, 2 V, 0 dB) |
| Residual Output Noise | |
| Channel Separation | |
| Speaker Impedance | Not Specified by Manufacturer |
| Tone Control | |
| Damping Factor | |
| Audio Processing | |
| DTS Compatibility | |
| Dolby Compatibility | |
| Auro 3D Support | |
| Upmixing Technology | |
| Supported File Formats | AAC, MP3, WAV, WMA via USB |
| Supported Sample Rates | Up to 768 kHz / 32-Bit (PCM) Up to 22.5792 MHz / 1-Bit (DSD) |
| DAC | 768 kHz / 32-Bit (ES9038Q2M) |
| HDR Compatibility | |
| Pass-Through Support | |
| Upscaling | |
| GUI | |
| Connectivity | |
| Rear A/V Inputs | 3 x Stereo RCA 1 x Stereo RCA Power Amp Direct 1 x Stereo RCA (Phono MM) with Ground Screw 2 x Optical TOSLINK 2 x Digital Coaxial DAC 1 x USB Type-B DAC 1 x USB Type-A DAC |
| Rear A/V Outputs | 1 x Stereo RCA Pre-Out 2 x Optical TOSLINK 2 x Digital Coaxial |
| Front I/O | 1 x 1/4" / 6.35 mm Headphone Output |
| Headphone Output Power | |
| Other Rear I/O | 1 x USB Type-A (Service) 2 x Wi-Fi Antenna Terminal 1 x Bluetooth Antenna Terminal 1 x 1/8" / 3.5 mm (12 V Trigger) Input 1 x 1/8" / 3.5 mm (12 V Trigger) Output |
| Speaker Connectors | 2 x Binding Post Pairs |
| HDCP Support | |
| HDMI Compression Modes | |
| Audio Return Channel (ARC) | |
| HDMI CEC | |
| Media Card Slot | None |
| A/B Speaker Selection | |
| Bi-Amp Capability | |
| Input Impedance | Line: 10 Kilohms Phono (MM): 47 Kilohms |
| Input Sensitivity | Line: 720 mV Phono (MM): 3.1 mV |
| Max Input Level | |
| Phono RIAA EQ Deviation | |
| Rated Output / Impedance | |
| Dynamic Range | |
| Signal to Noise Ratio | Line: > 110 dB (A-Weighted) D/A Output: 114 dB (A-Weighted) Amplifier Out: 110 dB (A-Weighted) |
| Total Harmonic Distortion (THD) | D/A Output: < 0.0006% (1 kHz / at 0 dB) Line to Speaker Out: < 0.003% (1 kHz / 8 Ohms) Headphone: < 0.01% (1 kHz / 50 mW Output) |
| Channel Separation | |
| Crosstalk | |
| Wireless Connectivity | |
| Wi-Fi | Wi-Fi 5 (802.11ac) |
| Wireless Security | |
| Bluetooth | 5.0 |
| Bluetooth Profiles | |
| Supported Audio Codecs | aptX, aptX LL |
| Bluetooth Range | |
| Wireless Audio Protocols | DTS Play-Fi |
| DLNA Support | |
| Control | |
| External Control Support | Android/iOS Control App |
| Virtual Assistant Support | |
| Tuner Type | |
| Number of Tuner Presets | |
| Radio Frequencies | |
| Sensitivity | |
| Signal to Noise Ratio | |
| Distortion | |
| Power | |
| AC Input Power | 100 to 120 VAC, 50 / 60 Hz |
| Power Consumption | Standby: 0.5 W |
| Physical | |
| Dimensions (W x H x D) | 17.3 x 6.1 x 12.9" / 440.0 x 156.0 x 327.0 mm |
| Weight | 20.1 lb / 9.1 kg |
