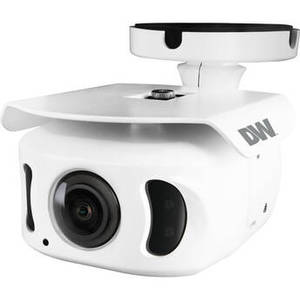

MEGApix DWC-MPBW8WI2TW 8MP Outdoor Network Bullet Camera with Night Vision
Product Description
Monitor an indoor or outdoor area with the MEGApix DWC-MPBW8WI2TW from Digital Watchdog. This unit uses a 1/1.8" CMOS sensor to capture 3840 x 2160 resolution video at 30 fps. Smart IR provides up to 100' of night vision. The camera's 2.3mm fixed lens delivers a 175° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A built-in memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera complies with ONVIF profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated aluminum enclosure that is suitable for outdoor use.
This bullet camera complies with ONVIF profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated aluminum enclosure that is suitable for outdoor use.
| Camera | |
| Sensor | 8 MP 1/1.8" CMOS |
| Lens Mount | |
| Focal Length | 2.3mm |
| Maximum Aperture | f/2.8 |
| Zoom | |
| Lens Field of View | Horizontal: 175° Vertical: 80° |
| IR Cut Filter | Mechanical |
| Day/Night | True |
| Minimum Illumination | Color: 0.29 Lux B&W: 0 Lux |
| Shutter Speed | 1/32000 to 1/15 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3840 x 2160 at 30 fps (10 Mb/s ) |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 2 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711 |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering |
| Supported Protocols | APIPA, DDNS, DHCP, DNS, FTP, HTTP, ICMP, NTP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profile S |
| Analytics | Motion Detection, Intelligent Video Analytics (IVA) with Extended Features (IVA+) |
| Built-In Installation Aids | |
| OS Compatibility | Windows 7 Windows 8 Windows 10 *As of July, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [Class 10/U1/V10 or Faster Recommended] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 8.9 W PoE: 12.3 W |
| Environmental | |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 10 to 90% |
| IP Rating | IP67 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x BNC |
| Illumination | IR LEDs up to 100' / 30.48 m |
| Video Management Software | DW Spectrum IPVMS |
| Supported Languages | |
| Certifications | |
| Material of Construction | Aluminum |
| Dimensions | H: 3.8 x W: 5.0 x L: 8.8" / H: 96.7 x W: 127.9 x L: 222.5 mm |
| Weight | 2.14 lb / 0.97 kg |
