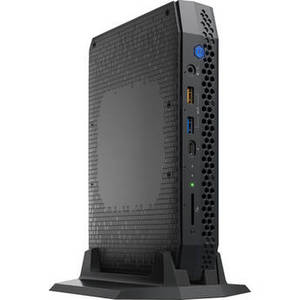

NUC 11 NUC11PHKi7C Enthusiast Mini PC Kit

Product Description
Build the compact computer powerhouse of your dreams with the Intel NUC 11 NUC11PHKi7C Enthusiast Mini PC Kit. This high-performance NUC kit features a soldered-on 11th generation Intel Core i7 quad-core processor in addition a dedicated NVIDIA GeForce RTX 2060 GPU to get you started with taking on demanding tasks such as video editing and playing games with real-time ray tracing effects. All you have to do is install up to 64GB of DDR4-3200 SO-DIMM memory modules across two slots and one or two high-performance M.2 solid-state drives to complete the system. Then install the Windows 10 operating system of your choice to start playing your favorite games and create content.
Enhance your workflow by connecting up to four monitors through the HDMI and mini DisplayPort outputs along with the two Thunderbolt 4 ports. There are also six USB 3.2 Gen 2 Type-A ports available for compatible peripherals such as high-performance storage drives. Enjoy low-latency online games and smooth 4K video streaming by using the NUC 11's integrated 802.11ax Wi-Fi and built-in Gigabit Ethernet port to connect to compatible networks. Purchasing a separately available VESA mount adapter allows you to attach this NUC to a monitor and turn it into an all-in-one system. The NUC 11 NUC11PHKi7C includes a 230W power adapter and a US power cable.
Enhance your workflow by connecting up to four monitors through the HDMI and mini DisplayPort outputs along with the two Thunderbolt 4 ports. There are also six USB 3.2 Gen 2 Type-A ports available for compatible peripherals such as high-performance storage drives. Enjoy low-latency online games and smooth 4K video streaming by using the NUC 11's integrated 802.11ax Wi-Fi and built-in Gigabit Ethernet port to connect to compatible networks. Purchasing a separately available VESA mount adapter allows you to attach this NUC to a monitor and turn it into an all-in-one system. The NUC 11 NUC11PHKi7C includes a 230W power adapter and a US power cable.
| Operating System | None |
| Model Year | |
| Performance | |
| CPU Architecture | x86 |
| Chipset | |
| CPU Socket | BGA 1449 |
| CPU | Intel Core i7-1165G7 Quad-Core (11th Gen) |
| CPU | |
| Maximum Boost Speed | 4.7 GHz |
| L3 Cache | 12 MB |
| Memory Type | 3200 MHz DDR4 |
| Total Installed Memory | None |
| Memory Configuration | 0 MB |
| Maximum Memory Capacity | 64 GB |
| Memory Slot Type | 260-Pin SO-DIMM |
| Memory Slots | 2 (2 Available) |
| Buffered Memory | |
| ECC Memory | No |
| Intel Optane Memory | |
| Graphics Type | Dedicated |
| GPU | NVIDIA GeForce RTX 2060 |
| Afterburner | |
| Panel Type | |
| Size | |
| Aspect Ratio | |
| Resolution | |
| Touchscreen | |
| Finish | |
| Maximum Brightness | |
| Color Gamut | |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | None |
| 2.5" Slots | |
| SSD Slots | 1 x M.2 2280 SATA / PCIe x4 (Available) 1 x M.2 22110 PCIe x4 (Available) |
| Total Installed Capacity | None |
| Solid State Storage | |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | None |
| PCI Expansion in MPX Bays | |
| Optical Drive | None |
| I/O | |
| Ports | 6 x USB Type-A (USB 3.1 / USB 3.2 Gen 2) |
| USB Type-C | 2 x Thunderbolt 4 (Supports DisplayPort and Power Delivery) |
| Display | 1 x HDMI 2.0a Output 1 x Mini DisplayPort 1.4 Output |
| Audio | 1 x TOSLINK S/PDIF Output 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | None |
| Built-In Microphones | None |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
| Communications | |
| Ethernet | 1 x RJ45 (Gigabit) |
| Wi-Fi | Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.2 |
| SIM Card Size | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| GPS | |
| NFC | No |
| Webcam | |
| Battery Chemistry | |
| Capacity | |
| Maximum Runtime | |
| Keyboard & Mouse | |
| Keyboard | None |
| Pointing Device | None |
| General | |
| Security | Kensington Lock Slot |
| Power Supply | 230 W with |
| AC Input Power | |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Operating Humidity | |
| Certifications | |
| Mounting-Hole Pattern | |
| Dimensions | 8.9 x 5.7 x 1.6" / 227 x 145 x 40 mm |
| Weight |
