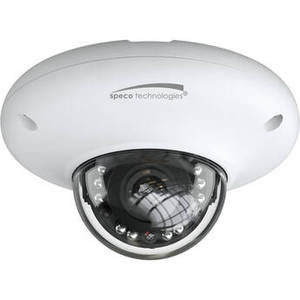

O4P4 4MP Outdoor Network Mini Dome Camera with Night Vision
Product Description
Monitor an outdoor area with the white O4P4 4MP Network Mini Dome Camera from Speco Technologies. This unit uses a 1/3" progressive scan CMOS sensor to capture 2592 x 1520 resolution video at 30 fps. IR LEDs provide up to 65' of night vision. The camera features a 2.8mm fixed lens, a wide 100.4° horizontal field of view, a built-in microphone, and a 3.5mm audio input. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. A built-in memory card slot supports microSD cards up to 128GB (available separately).
This dome camera complies with ONVIF profile T, making it compatible with a wide range of surveillance devices. A wall mount is included for installation. The camera's enclosure is IP67-rated for safe outdoor use in temperatures as low as -40°.
This dome camera complies with ONVIF profile T, making it compatible with a wide range of surveillance devices. A wall mount is included for installation. The camera's enclosure is IP67-rated for safe outdoor use in temperatures as low as -40°.
| Camera | |
| Sensor | 4 MP 1/3" CMOS |
| Lens Mount | |
| Focal Length | 2.8mm |
| Maximum Aperture | |
| Zoom | |
| Lens Field of View | Horizontal: 100.4° Vertical: 68° |
| IR Cut Filter | Mechanical |
| Day/Night | True |
| Minimum Illumination | Color: 0.005 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/30 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2592 x 1520 at 30 fps (8 Mb/s ) |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | G.711 |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | Input: 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection, Watermark |
| Supported Protocols | DDNS, DHCP, FTP, HTTP, IPv4/v6, NTP, PPPoE, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profile T |
| Analytics | Motion, Missing Object, Abandoned Object, Intrusion, Vehicle, Human, Tampering, Scene Change & Face Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of February, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum] |
| Internal Storage | None |
| External Storage Options | Cloud |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 7.5 W |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | IR LEDs up to 65' / 19.8 m |
| Video Management Software | SecureGuard VMS & CMS for PC Applications SecureGuard Client & Speco Blue for iOS & Android |
| Supported Languages | |
| Certifications | |
| Material of Construction | |
| Dimensions | �: 4.3 x H: 2.3" / �: 109.2 x H: 58.4 mm |
| Weight | 0.76 lb / 345 g |
