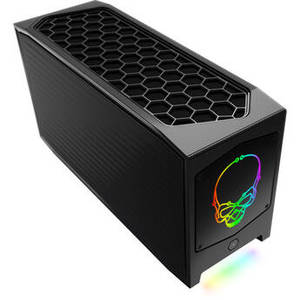

NUC 11 Extreme Mini Desktop Computer (Barebone, US Power Cable)
Product Description
Bring powerful gaming to small spaces with the NUC 11 Extreme Mini Desktop Computer from Intel. Designed for tailored performance, this barebone mini desktop computer features an 11th Gen Intel Core i9 8-core CPU. This kit comes without RAM, storage drives, or an OS installed, allowing you to install the internals and operating system of your preference for a truly custom loadout. Install up to 64GB of 3200 MHz DDR4 memory across two RAM slots, and add up to four SSDs via two M.2 PCIe 4.0 x4 and two PCIe 3.0 x4 slots. Integrated Intel UHD Graphics support up to three displays right out of the box, or install graphics cards up to 12" via the PCIe 4.0 x16 interface for improved performance.
Connect to wired peripherals via eight USB 3.1 Gen 2 Type-A ports or two Thunderbolt 4 ports. Or, put the kibosh on cables with Bluetooth 5.2 and Wi-Fi 6E. An RJ45 port is also present, supporting 2.5 Gigabit Ethernet connections. Access compatible memory cards via the built-in 3-in-1 SD, SDHC, and SDXC card reader, and connect a headset via the 3.5mm combo audio jack. Connect monitors via an HDMI 2.0b port, or via the Thunderbolt 4 ports using DisplayPort Alt Mode. Designed to fit tight spots, the Intel NUC 11 Extreme Mini Desktop Computer Kit features an 8L volume and measures just 14" on its longest side. A US power cable is included.
| Operating System | None |
| Performance | |
| CPU Architecture | x86 |
| Chipset | Intel WM590 |
| Processor | Intel Core i9-11900KB (11th Gen) |
| CPU Socket | |
| CPU | 3.3 to 4.9 GHz 8-Core |
| L3 Cache | 24 MB |
| Graphics Type | Integrated |
| GPU | Intel UHD Graphics |
| Memory Type | 3200 MHz DDR4 |
| Total Installed Memory | None |
| Memory Configuration | |
| Maximum Memory Capacity | 64 GB |
| Memory Slot Type | 260-Pin SO-DIMM |
| Memory Slots | 2 (2 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Intel Optane Memory | |
| Afterburner | |
| Panel Type | |
| Size | |
| Aspect Ratio | |
| Resolution | |
| Touchscreen | |
| Finish | |
| Maximum Brightness | |
| Color Gamut | |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | None |
| 2.5" Slots | |
| SSD Slots | 2 x M.2 PCIe 4.0 x4 (Available) 2 x M.2 PCIe 3.0 x4 (Available) |
| Total Installed Capacity | None |
| Solid State Storage | |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | 1 x PCIe 4.0 x16 (Available) 1 x PCIe 4.0 x4 (Available) |
| PCI Expansion in MPX Bays | |
| Optical Drive | None |
| I/O | |
| Ports | 8 x USB Type-A (USB 3.1 / USB 3.2 Gen 2) |
| USB Type-C | 2 x Thunderbolt 4 (Supports DisplayPort and Power Delivery) |
| Display | 1 x HDMI 2.0b |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | None |
| Built-In Microphones | None |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
| Communications | |
| Ethernet | 1 x RJ45 (2.5GbE) |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.2 |
| SIM Card Size | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| GPS | None |
| NFC | No |
| Webcam | |
| Battery Chemistry | |
| Capacity | |
| Estimated Battery Life | |
| Keyboard & Mouse | |
| Keyboard | None |
| Pointing Device | None |
| General | |
| Security | Kensington Lock Slot |
| Power Supply | |
| AC Input Power | |
| Operating Temperature | |
| Operating Humidity | |
| Mounting-Hole Pattern | |
| Dimensions | 14.1 x 7.4 x 4.7" / 357 x 189 x 120 mm |
| Weight |
