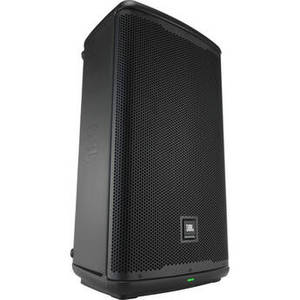

EON712 Two-Way 12" 1300W Powered Portable PA Speaker with Bluetooth and DSP

Product Description
Designed to deliver professional-quality audio, the 12" JBL EON712 is a highly flexible, easy to use, 1300W powered portable PA speaker for today's working musicians, singer/songwriters, mobile DJs, and other sound providers. The speaker works in a variety of orientations and configurations for use as a main PA or stage monitor. When used as a main speaker, a pair of EON712's is well equipped to cover an audience of 300.
A push button and LCD menu screen on the back of the speaker allow you to physically switch between optimized use-case presets. The built-in DSP provides user control over the 3-channel mixer and the integrated dbx DriveRack, which offers Automatic Feedback Suppression (AFS), an 8-band output EQ, microphone ducking, and a 100ms speaker delay. The highly efficient 1300W amplifier powers the 12" woofer and 1" compression driver, which provide full-range audio (60 Hz to 20 kHz) with a sound pressure level powerful enough to ensure the entire audience can hear your performance. JBLs redesigned high-frequency horn ensures a uniform coverage front to back with a dispersion of 100°H x 60°V. The EON712 includes a power cord.
A push button and LCD menu screen on the back of the speaker allow you to physically switch between optimized use-case presets. The built-in DSP provides user control over the 3-channel mixer and the integrated dbx DriveRack, which offers Automatic Feedback Suppression (AFS), an 8-band output EQ, microphone ducking, and a 100ms speaker delay. The highly efficient 1300W amplifier powers the 12" woofer and 1" compression driver, which provide full-range audio (60 Hz to 20 kHz) with a sound pressure level powerful enough to ensure the entire audience can hear your performance. JBLs redesigned high-frequency horn ensures a uniform coverage front to back with a dispersion of 100°H x 60°V. The EON712 includes a power cord.
Portable PA System | |
Speaker Configuration | 1 x 2-Way Loudspeaker |
Number of Input Channels | 3 (2 x Mono, 1 x Stereo) |
Amplifier Power Rating | 1 x 1300 W Peak 1 x 650 W RMS |
Amplifier Class | |
Impedance | |
Speakers | |
Enclosure Type | Bass-Reflex |
Full-Range Driver | |
Full-Range Driver (Oval) | |
HF Driver | 1 x 1" / 25.4 mm Horn-Loaded Compression Driver |
HF Voice Coil | |
MF Driver | |
MF Voice Coil | |
LF Driver | 1 x 12" / 304.8 mm Woofer |
LF Voice Coil | 2" / 50.8 mm |
Subwoofer Driver | |
Subwoofer Voice Coil | |
Magnet | LF Driver: Ferrite HF Driver: Neodymium |
Speaker Sensitivity | |
Signal Processing | |
Crossover | 2 kHz (Internal) |
Input Pad | None |
EQ | None |
Semi-Parametric EQ | None |
Effects | None |
DSP | |
Filters | None |
Dynamic Processing | |
Microphone | |
Form Factor | |
Capsule | |
Polar Pattern | |
Output Connector | |
Operating Voltage | |
Microphone Sensitivity | |
Muting | |
Performance | |
Frequency Response | 60 Hz to 20 kHz -3 dB |
Frequency Range | 50 Hz to 20 kHz -10 dB |
Maximum SPL | 127 dB (Peak) |
Max Coverage Distance | |
Max Coverage Area | |
Coverage Angle | 100° H x 60° V |
Coverage Angle | |
Input Sensitivity | |
Gain Range | 0 dB to +36 dB |
Max Input Level | |
I/O Impedance | Input: 50 Kilohms (Unbalanced, Mono) 100 Kilohms (Balanced, Mono) |
SNR | |
THD | |
Dynamic Range | |
Protections | |
Connectivity | |
Audio I/O | 2 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input 1 x XLR 3-Pin Male Balanced Line Thru/Output |
Phantom Power | |
USB | None |
Media Playback | |
Media & File Formats Supported | |
Network I/O | None |
Wireless Connectivity | Bluetooth |
Wireless | |
Wireless Transmission | |
Max Wireless Range | |
Number of RF Channels | |
RF Frequency Band | |
RF Bandwidth | |
Form Factor | |
RF Output Power | |
Transmitter I/O | |
Max Number of Simultaneous Transmitters | |
Diversity | |
Antenna | |
Squelch | |
Approximate RF Sensitivity | |
Deviation | |
Modulation | |
RF Channel Crosstalk | |
Spurious | |
Bluetooth | |
Bluetooth | 5.0 |
Bluetooth Profiles | |
Pairing | |
Bluetooth Channel | |
Frequency | |
Bluetooth Power Class | |
Bluetooth Input Gain | |
Transmitter Power | |
Bluetooth Range | |
Power | |
Battery Type | |
Approximate Battery Life | |
Battery Charging Time | |
Internal Battery Capacity | |
Battery Cycle Count | |
AC Input Power | Universal: 100 to 120 VAC, 50 / 60 Hz |
Power Supply Output | |
Current Consumption | |
Power Consumption | |
DC Input Power | |
AC Power Connector | |
Physical | |
Cable Length | |
Transport Options | 2 x Handle |
Mounting | 4 x M10 Fly Point 1 x 1.4" / 36 mm Pole Socket (Bottom) 1 x Bracket Point |
Stand Height | |
Stand Load Capacity | |
Cooling | Convection |
Construction Material | Metal Grille, Polypropylene |
IP Rating | |
Operating Temperature | |
Storage Temperature | |
Operating Humidity | |
Certifications | |
Dimensions | 26.4 x 15 x 12.9" / 670 x 381 x 328 mm |
Weight | 32.19 lb / 14.6 kg |
