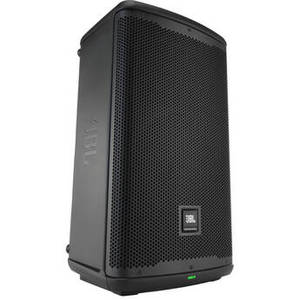

EON710 Two-Way 10" 1300W Powered Portable PA Speaker with Bluetooth and DSP


From JBL | Model #: JBEON710



See more in Electronics


EON710 Two-Way 10" 1300W Powered Portable PA Speaker with Bluetooth and DSP

Product Description

Designed to deliver professional-quality audio, the 10" JBL EON710 is a highly flexible, easy to use, 1300W powered portable PA speaker for today's working musicians, singer/songwriters, mobile DJs, and other sound providers.

The speaker works in a variety of orientations and configurations for use as a main PA or stage monitor. When used as a main speaker, a pair of EON710's is well equipped to cover an audience of 250.

A push button and LCD menu screen on the back of the speaker allow you to physically switch between optimized use-case presets. The built-in DSP provides user control over the 3-channel mixer and the integrated dbx DriveRack, which offers Automatic Feedback Suppression (AFS), an 8-band output EQ, microphone ducking, and a 100ms speaker delay.

Two inputs (Ch.1 and Ch.2) feature combo XLR-1/4" connectors complete with gain controls and signal/clip indicators. The third channel is the Bluetooth 5.0 input for wireless audio streaming.

With independent inputs, the EON710 is a great choice for any singer/songwriter or solo performer with an instrument. You have independent control over mic and instrument levels, while the Bluetooth input provides backing tracks or incidental music between sets.

It also features an XLR Thru-Output for daisy-chaining to additional speakers or other audio equipment. All mono inputs are mixed to a mono signal internally and output through the Pass-Thru XLR connector. For a true stereo L/R operation, two EON710s are needed, with each to receive independent the left and right signals respectively.

The highly efficient 1300W amplifier powers the 10" woofer and 1" compression driver, which provide full-range audio (65 Hz to 20 kHz) with a sound pressure level powerful enough to ensure the entire audience can hear your performance. JBLs redesigned high-frequency horn ensures a uniform coverage front to back with a dispersion of 110°H x 60°V. The EON710 includes a power cord.

Portable PA System
Speaker Configuration 1 x 2-Way Loudspeaker
Number of Input Channels 3 (2 x Mono, 1 x Stereo)
Amplifier Power Rating 1 x 1300 W Peak
1 x 650 W RMS
Amplifier Class
Impedance
Speakers
Enclosure Type Bass-Reflex
Full-Range Driver
Full-Range Driver (Oval)
HF Driver 1 x 1" / 25.4 mm Horn-Loaded Compression Driver
HF Voice Coil
MF Driver
MF Voice Coil
LF Driver 1 x 10" / 254 mm Woofer
LF Voice Coil 2" / 50.8 mm
Subwoofer Driver
Subwoofer Voice Coil
Magnet LF Driver:
Ferrite
HF Driver:
Neodymium
Speaker Sensitivity
Signal Processing
Crossover 2 kHz (Internal)
Input Pad None
EQ None
Semi-Parametric EQ None
Effects None
DSP
Filters None
Dynamic Processing
Microphone
Form Factor
Capsule
Polar Pattern
Output Connector
Operating Voltage
Microphone Sensitivity
Muting
Performance
Frequency Response 65 Hz to 20 kHz -3 dB
Frequency Range 52 Hz to 20 kHz -10 dB
Maximum SPL 125 dB (Peak)
Max Coverage Distance
Max Coverage Area
Coverage Angle 110° H x 60° V
Coverage Angle
Input Sensitivity
Gain Range 0 dB to +36 dB
Max Input Level
I/O Impedance Input:
50 Kilohms (Unbalanced, Mono)
100 Kilohms (Balanced, Mono)
SNR
THD
Dynamic Range
Protections
Connectivity
Audio I/O 2 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input
1 x XLR 3-Pin Male Balanced Line Thru/Output
Phantom Power
USB None
Media Playback
Media & File Formats Supported
Network I/O None
Wireless Connectivity Bluetooth
Wireless
Wireless Transmission
Max Wireless Range
Number of RF Channels
RF Frequency Band
RF Bandwidth
Form Factor
RF Output Power
Transmitter I/O
Max Number of Simultaneous Transmitters
Diversity
Antenna
Squelch
Approximate RF Sensitivity
Deviation
Modulation
RF Channel Crosstalk
Spurious
Bluetooth
Bluetooth 5.0
Bluetooth Profiles
Pairing
Bluetooth Channel
Frequency
Bluetooth Power Class
Bluetooth Input Gain
Transmitter Power
Bluetooth Range
Power
Battery Type
Approximate Battery Life
Battery Charging Time
Internal Battery Capacity
Battery Cycle Count
AC Input Power Universal:
100 to 120 VAC, 50 / 60 Hz
Power Supply Output
Current Consumption
Power Consumption
DC Input Power
AC Power Connector
Physical
Cable Length
Transport Options 1 x Handle
Mounting 4 x M10 Fly Point
1 x 1.4" / 36 mm Pole Socket (Bottom)
1 x Bracket Point
Stand Height
Stand Load Capacity
Cooling Convection
Construction Material Metal Grille, Polypropylene
IP Rating
Operating Temperature
Storage Temperature
Operating Humidity
Certifications
Dimensions 23.1 x 13.1 x 12" / 587 x 332 x 305 mm
Weight 26.2 lb / 11.9 kg
