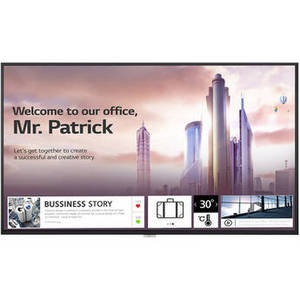

UH5F-H 75" Class 4K UHD Digital Signage & Conference Room Smart IPS LED Display

From LG | Model #: LG75UH5FH

See more in Electronics

Product Description

Conduct productive meetings or advertise your business or product with the LG UH5F-H 75" Class 4K UHD Digital Signage & Conference Room Smart IPS LED Display. The onboard webOS platform provides a variety of tools to meet your signage and communication needs. The display features a 4K UHD native resolution for playback of compatible media in enhanced detail, and its maximum brightness level of 500 cd/m² helps improve visibility in high-brightness environments, such as a retail store.

The UH5F-H features a removable logo to help keep your clients' focus on your content instead of the chassis. Its IP5X dust-resistance rating allows for installation in places where regular cleaning is difficult. It can be controlled via various control protocols, including Crestron, via RS-232C, LAN, and the included remote control.

Display
Screen Size (Diagonal)	75"
Resolution	3840 x 2160
Supported Display Resolutions
Panel Type	IPS-Type LCD
Bit Depth / Color Support	10-Bit (1.07 Billion Colors)
Color Gamut	72% NTSC
HDR Compatibility
Brightness	500 cd/mï¿½ (Typical)
Viewing Angle (H x V)	178 x 178°
Screen Area
Aspect Ratio	16:9
Contrast Ratio	1100:1
Dynamic Contrast Ratio	1,000,000:1
Response Time	6 ms (GtG)
Refresh Rate	120 Hz
Horizontal Frequency
Vertical Frequency
Dot Pitch
Pixels Per Inch (ppi)
Backlighting Technology	Edge LED
Pixel Clock Frequency
Connectivity
Primary Connectivity Location	Display
Input Ports	2 x HDMI – Audio, Video (Bottom) 1 x HDMI – Audio, Video (Side) 1 x DisplayPort – Audio, Video (Side) 1 x DVI-D – Video (Side) 1 x 1/8" / 3.5 mm – Audio (Bottom)
Output Ports	1 x DisplayPort – Audio, Video (Side) 1 x 1/8" / 3.5 mm – Audio (Bottom)
USB Ports	2 x USB 2.0, USB-A (Side)
Ethernet Ports	Bottom: 1
Control	IR via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Output
Wi-Fi	Built-in
Number of OPS/Expansion Slots	1
General
TV Tuner	No
Display Orientation	Landscape, Portrait
HDCP Support	Yes
Maximum Multiple Display Configuration	15 x 15
3D
Ambient Light Sensor	Yes
Lighting Lifespan
Surface
Surface Treatment	Anti-Glare
Haze Level	28%
Audio
Built-In Speakers	Yes
Processing
Hardware
Operating System	webOS 4.0
Processor
CPU
RAM	8 GB
OS Compatibility
Built-In Mic
NFC
Supported Video File Types
Supported Audio File Types
Supported Photo File Types
Supported Document File Types
Multi-Input Support (PIP/PBP)
Supported Languages
Swivel Adjustment
Tilt Adjustment
Electrical
Power Consumption	Typical: 180.0 W Maximum: 260.0 W Standby: 0.5 W
AC Input Power	100 to 240 VAC, 50 / 60 Hz
DC Input Power
Power Adapter Type	Internal
Apparent Power
Environmental
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature
Operating Humidity	10 to 80%
Storage Humidity
Operating Altitude
Storage Altitude
Operating Shock
Operating Vibration
Certifications	CE, ENERGY STAR, FCC-A *as per Manufacturer
Physical
Wall Mounting	600 x 400 mm
Material of Construction
Audible Noise
IP Rating	IP5X
IK Rating
IR Sensor	Yes, Detachable
Glass Thickness
Bezel Thickness	14.9 mm
Duty Cycle	24 Hours / 7 Days
Dimensions	66.2 x 37.8 x 2.3" / 1682.4 x 960.3 x 57.9 mm (without Handle)
Weight	91.5 lb / 41.5 kg
