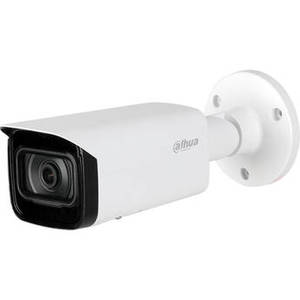

N85DF62 8MP Outdoor ePoE Network Bullet Camera with Night Vision
Product Description
Monitor an indoor or outdoor area with the N85DF62 8MP ePoE Network Bullet Camera from Dahua Technology. This unit uses a 1/1.8" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 30 fps. Four IR LEDs provide up to 98' of night vision. The camera's 2.8mm fixed lens delivers a 111° horizontal field of view. Two-way audio is possible thanks to an RCA audio input and output and a built-in microphone. A memory card slot supports microSD cards up to 256GB (available separately). Integrated ePoE technology offers a cost-effective solution for transmitting power and data over long distances via Ethernet or coaxial cables when compared to running separate wires.
This bullet camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism.
This bullet camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 8 MP 1/1.8" CMOS |
| Lens Mount | M16 |
| Focal Length | 2.8mm |
| Maximum Aperture | f/1.4 |
| Zoom | |
| Lens Field of View | Horizontal: 111° Vertical: 59° Diagonal: 131° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.004 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3840 x 2160 at 30 fps (8.192 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.723, G.726, PCM |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | Input: RCA Output: RCA |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, User Access Log |
| Supported Protocols | ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T, CGI, Milestone, P2P |
| Analytics | Tampering, Memory Card Error, Network Error, Unauthorized Access, IP Address Conflict, Missing Object, Abandoned Object, Scene Change, Fast Moving, Parking Detection, Crowd Gathering, Loitering Detection, Smart Plan Schedule, Perimeter Protection (Tripwire & Intrusion), People Counting (Line Crossing, Region), Queue Management, Face Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | 1 GB RAM / 128 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 4.1 W PoE: 7.5 W |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 4 x IR LEDs up to 98.4' / 30 m |
| Video Management Software | DSS, DMSS |
| Supported Languages | |
| Certifications | |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | H: 3.0 x W: 3.1 x L: 9.5" / H: 75.9 x W: 79.0 x L: 241.1 mm |
| Weight | 1.81 lb / 0.82 kg |
