N88BR5V 8MP Outdoor Network 360° Panoramic Fisheye Camera with Night Vision
Product Description

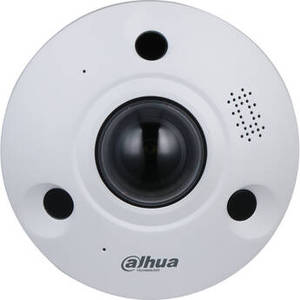

Monitor an indoor or outdoor area with the N88BR5V 8MP Network 360° Panoramic Fisheye Camera from Dahua Technology. This unit uses a 1/1.7" progressive scan CMOS sensor to capture 3280 x 2480 resolution video at 30 fps. Three IR LEDs provide up to 33' of night vision. The camera's 1.29mm fixed lens delivers a 360° horizontal field of view. Two-way audio communication is possible thanks to a built-in microphone and speaker, an audio input, and an audio output. A memory card slot accepts microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This fisheye camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
This fisheye camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 8 MP 1/1.7" CMOS |
| Lens Mount | M12 |
| Focal Length | 1.3mm |
| Maximum Aperture | f/2 |
| Zoom | |
| Lens Field of View | Horizontal: 360° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.01 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3280 x 2480 at 30 fps (16.384 Mb/s H.264) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.723, G.726, PCM |
| Built-In Mic | Yes |
| Built-In Speaker | Yes |
| Audio I/O | Input: RCA Output: RCA |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, User Access Log |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP, syslog |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T, CGI, Milestone, Genetec, P2P |
| Analytics | Tampering, Memory Card Error, Network Error, Unauthorized Access, IP Address Conflict, Heat Mapping, Perimeter Protection (Tripwire & Intrusion), People Counting (Line Crossing, Region) |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 2 / 2 |
| Hardware | |
| Memory | 4 GB RAM / 2000 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3at (30 W) |
| Power Consumption | DC: 13 W PoE+: 13.9 W |
| Environmental | |
| Operating Temperature | -40 to 131°F / -40 to 55°C |
| Startup Temperature | |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 3 x IR LEDs up to 32.8' / 10 m |
| Video Management Software | DSS, DMSS |
| Supported Languages | |
| Certifications | |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | �: 5.9 x H: 2.4" / �: 149.8 x H: 59.8 mm |
| Weight | 1.74 lb / 0.79 kg |
