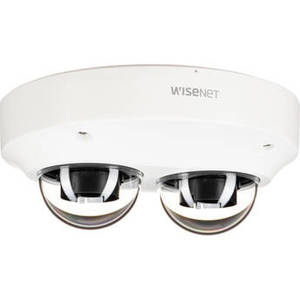

P Series PNM-9000VD 10MP Outdoor Dual-Sensor Network Dome Camera (No Lenses)
Product Description
Monitor your property with the P Series PNM-9000VD 10MP Outdoor Dual-Sensor Network Dome Camera from Hanwha Techwin. It supports two (separately available) lens modules of your choice, each with a 5MP CMOS sensor, to capture two channels of video at up to 2560 x 1920 resolution each. The camera can deliver color video in lighting conditions as low as 0.16 lux.
Suitable for use in vandal-prone outdoor locations, the camera is housed in an IP66- and IK10-rated enclosure. Two built-in microSD card slots allow for onboard storage of footage. PoE technology simplifies installation by enabling you to run just one cable for both data and power while ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
Suitable for use in vandal-prone outdoor locations, the camera is housed in an IP66- and IK10-rated enclosure. Two built-in microSD card slots allow for onboard storage of footage. PoE technology simplifies installation by enabling you to run just one cable for both data and power while ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
| Camera | |
| Sensor | |
| Lens Mount | |
| Focal Length | |
| Maximum Aperture | |
| Zoom | Digital |
| Lens Field of View | |
| IR Cut Filter | |
| Day/Night | |
| Minimum Illumination | Color: 0.16 Lux |
| Shutter Speed | 1/12000 to 2 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2560 x 1920 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 10 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PIM, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | SUNAPI (HTTP API) |
| Analytics | Defocus Detection, Directional Detection, Virtual Line, Fog Detection, Face Detection, Motion Detection, Appear/Disappear, Enter/Exit, Loitering Detection, and Tampering Detection |
| Built-In Installation Aids | |
| OS Compatibility | Windows 7 Windows 8.1 Windows 10 macOS 10.10 to 10.12 *As of February, 2020: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | |
| Alarm I/O | |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | PoE 802.3af (15 W) |
| Power Consumption | PoE: 12.95 W |
| Environmental | |
| Operating Temperature | -40 to 131°F / -40 to 55°C |
| Startup Temperature | |
| Storage Temperature | -50 to 60°F / -45 to 15°C |
| Operating Humidity | 0 to 89% |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 |
| Illumination | |
| Video Management Software | |
| Supported Languages | Czech Dutch English French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Spanish Swedish Traditional Chinese Turkish |
| Certifications | EAC, UL, as per Manufacturer |
| Material of Construction | Aluminum |
| Dimensions | �: 7.8 x H: 3.3" / �: 197.6 x H: 84.0 mm |
| Weight | 2.75 lb / 1250 g |
