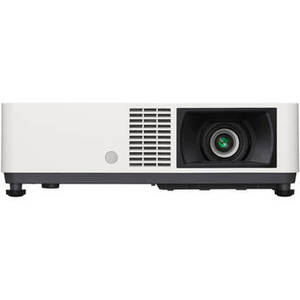

VPL-CWZ10 5000-Lumen WXGA Laser 3LCD Projector
Product Description
Enjoy bright presentations in many settings with the Sony VPL-CWZ10 5000-Lumen WXGA Laser 3LCD Projector. Its 5000 lumens of brightness combined with its WXGA native resolution will help keep images bright and detailed, even in rooms with some ambient light.
The VPL-CWZ10 has composite video, VGA, and two HDMI inputs to support a variety of sources, and its analog audio input and output will allow you to use either the built-in 16W speaker or output your audio to an external system. The projector is controllable via RS-232 or the included remote control.
The VPL-CWZ10 has composite video, VGA, and two HDMI inputs to support a variety of sources, and its analog audio input and output will allow you to use either the built-in 16W speaker or output your audio to an external system. The projector is controllable via RS-232 or the included remote control.
| Image Display | |
| Display System | 3-Chip 0.64" LCD |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | Maximum: WUXGA - 1920 x 1200 |
| Maximum Brightness | White: 5000 Lumens (ISO) Color: 5000 Lumens |
| Offset | 37% vertical |
| Aspect Ratio | Native: 16:10 |
| Dynamic Contrast Ratio | |
| Scan | Horizontal: 15 to 92 kHz Vertical: 48 to 92 Hz |
| Lens | |
| Focus | Manual |
| Optical Zoom | Manual: 1.6x |
| Throw Ratio | 1.29 to 2.07:1 |
| Projection Size | 40 - 300" / 101.6 - 762.0 cm |
| Features | |
| Keystone Correction | Horizontal: ± 30° Vertical: ± 30° |
| Supported HDR Input Formats | None |
| Digital Zoom | |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Ceiling Mountable | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 16W |
| Input/Output Connectors | |
| Inputs/Outputs | 2 x HDMI (HDMI) Audio, Video Input 1 x DE-15/DB-15 (VGA) Video Input 1 x RCA Video Input 1 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x RJ45 (Ethernet) LAN 1 x DE-9/DB-9 (RS-232) Control 1 x USB-A (USB 2.0) Service Input |
| Processor | |
| CPU | |
| General | |
| Light Source | Laser Phosphor |
| Expected Lamp Life | Medium Brightness: 20,000 Hours |
| Fan Noise | Full Brightness: 36 dB Medium Brightness: 32 dB Low Brightness: 28 dB |
| Security | Cable Lock Slot |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 to 3.4 A |
| DC Input Power | |
| Heat Dissipation | 1167 BTU (AC 100 to 120V) 1112 BTU (AC 220 to 240V) |
| Power Consumption | Medium Brightness: 342 W Standby Mode (Lamp Off): 0.5 W |
| Operating Altitude | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 80% |
| Dimensions (W x H x D) | 14.6 x 3.9 x 12.6" / 371.0 x 100.0 x 319.3 mm Without Protrusions |
| Weight | 12.6 lb / 5.7 kg |
