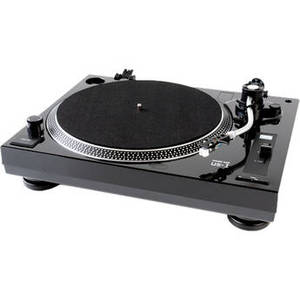

us-1 Manual Two-Speed Turntable with Preamp (High-Gloss Black)
Product Description
Enjoy your favorite vinyl records with the high-gloss black Music Hall us-1 Manual Two-Speed Turntable. It plays 33 1/3 and 45 rpm vinyl records and features an S-shaped tonearm with a switchable preamp and a stereo RCA output to allow you to play through any home stereo system. An RCA cable and a 45 rpm adapter are included for instant connectivity and playback.
| Turntable | |
| Type | Manual |
| Speeds | 33 1/3, 45 rpm |
| Speed Tolerance at Normal Pitch | Within ±1.3% |
| Motor | DC |
| Drive Mechanism | Belt |
| Wow and Flutter | <0.25% WRMS (JIS WTD) with 33 1/3 rpm |
| Start Time | <1 Second, 33 1/3 rpm Speed |
| Brake Time | <1 Second, 33 1/3 rpm Speed |
| Speed Adjustment | <1 Second, 33 1/3 or 45 rpm Speed |
| Pitch Control | ±10% Adjustable |
| Connectors | 1 x Stereo RCA Pair with Ground Screw |
| Phono Output Level | 1.5 to 3.6 mV @ 1 kHz, 5 cm/Second (HP-4005) |
| Line Output Level | 90 to 216 mV @ 1 kHz, 5 cm/Second (HP-4005) |
| Output | EQ Amp: 150 mV &pm4 dB |
| Tonearm | |
| Tonearm Type | Static-Balanced S-Shaped |
| Construction Material | Not Specified by Manufacturer |
| Effective Arm Length | 8.66" / 220 mm |
| Overhang | Not Specified by Manufacturer |
| Tracking Error Angle | <3° |
| Cartridge Weight | Compatibility: 6 to 10 g |
| Anti-Skating Range | 0 to 4 g |
| Cartridge | |
| Cartridge Type | Audio Technica AT3600L Moving Magnet |
| Frequency Response | 20 Hz to 20 kHz |
| Channel Balance | Within 2.5 dB @ 1 kHz |
| Channel Separation | >15 dB |
| Vertical Tracking Angle | 20° |
| Stylus Shape | Not Specified by Manufacturer |
| Needle Pressure Range | 3 to 4 g |
| High of Cue | 6 to 10.5 mm |
| Descend of Cue | 1 to 3 Seconds |
| Platter | |
| Turntable Platter | Aluminum |
| Platter Diameter | 12.99" / 330 mm |
| Physical Specifications | |
| Power Requirements | 115 to 230 VAC, 50/60 Hz, Switchable |
| Power Consumption | 8 W |
| Dimensions | 17.72 x 5.71 x 13.78" / 450 x 145 x 350 mm |
| Weight | 9.7 lb / 4.4 kg |
