Product Description

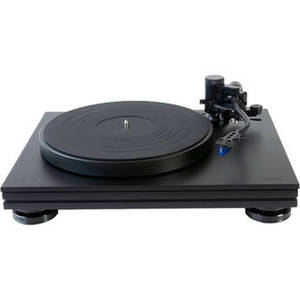

Enjoy your favorite records with the Music Hall Stealth Manual Three-Speed Turntable. It plays 33 1/3, 45, and 78 rpm records and features a switchable auto-stop function that stops the motor when the record ends. Its stereo RCA output allows you to plug it into nearly any audio system via your phono preamp. An RCA cable and a 45 rpm adapter are included for instant connectivity and playback.
| Turntable | |
| Type | Manual |
| Speeds | 33 1/3, 45, 78 rpm |
| Speed Tolerance at Normal Pitch | 3000 Hz ±0.3% |
| Motor | Low Torque, Brushless |
| Motor Torque | Typical: >2.65 lb / 1.2 kg Limit: >2.21 lb / 1 kg |
| Drive Mechanism | Direct |
| Wow and Flutter | Typical: <0.07% WTD @ 3 kHz RMS Limit: <0.12% WTD @ 3 kHz RMS |
| Connectors | 1 x Stereo RCA Pair with Ground Screw |
| Tonearm | |
| Tonearm Type | Static-Balanced, S-Shaped |
| Construction Material | Aluminum |
| Effective Arm Length | 9" / 230 mm |
| Overhang | 0.59" / 15 mm |
| Anti-Skating Adjustment | 0 to 4 g |
| Cartridge Weight | Applicable: 6 to 10 g |
| Height | Cue: 8 to 10.5 mm |
| Descent Speed | 1 to 3 sec |
| Inner Null Point | 2.32" / 58.8 mm |
| Outer Null Point | 4.47" / 113.52 mm |
| Cartridge | |
| Cartridge Type | Ortofon 2M Blue Pre-Mounted |
| Frequency Response | Typical: 20 Hz to 20 kHz, ±0.5 dB Limit: 20 Hz to 20 kHz, ±1 dB |
| Channel Balance | Typical: ±1.5 dB @ 1 kHz Limit: ±2 dB @ 1 kHz |
| Channel Separation | Typical: >20 dB @ 1 kHz Limit: >15 dB @ 1kHz |
| Output Level | Typical: 3.894 to 6.172 mV @ 1 kHz, 5cm/sec, 5.5 mV, -3 / +1 dB Limit: 3.471 to 6.925 mV @ 1 kHz, 5cm/sec, 5.5 mV, -4 / +2 dB |
| Output Voltage | 5.5 mV @ 1 kHz (5 cm/sec) |
| S/N Ratio | Typical: >70 dB (DIN-B) Limit: >65 dB (DIN-B) |
| Noise Floor | Not Specified by Manufacturer |
| Offset Angle | 22° |
| Vertical Tracking Force | 1.6 to 2 g (1.8 g Recommended) |
| Tracking Error Angle | <3° |
| Stylus | Not Specified by Manufacturer |
| Platter | |
| Turntable Platter | Die-Cast Aluminum |
| Platter Diameter | 12" / 305 mm |
| Weight | 4 lb / 1.8 kg |
| Physical Specifications | |
| Power Supply | 12 VDC, 2 A |
| Power Consumption (Standby) | <3 W |
| Dimensions | 17.84 x 5.78 x 14.24" / 453 x 146.7 x 361.67 mm |
| Weight (Approximate) | 24 lb / 11 kg |
