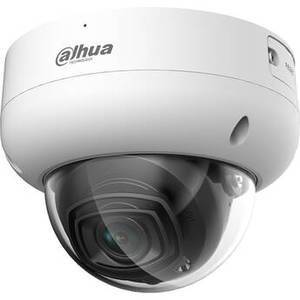

N45EYN2 4MP Outdoor ePoE Night Color 2.0 Network Dome Camera
Product Description
Monitor an indoor or outdoor area with the N45EYN2 4MP ePoE Night Color 2.0 Network Dome Camera from Dahua Technology. This unit uses a 1/1.8" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. Two white-light LEDs provide up to 65' of illumination to record full color video in low-light conditions. The camera's 2.8mm fixed lens delivers a 107° horizontal field of view. Two-way audio is possible thanks to an RCA audio input and output and a built-in microphone. A memory card slot supports microSD cards up to 256GB (available separately). Integrated ePoE technology offers a cost-effective solution for transmitting power and data over long distances via Ethernet or coaxial cables when compared to running separate wires.
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism.
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 4 MP 1/1.8" CMOS |
| Lens Mount | M16 |
| Focal Length | 2.8mm |
| Maximum Aperture | f/1 |
| Zoom | |
| Lens Field of View | Horizontal: 107° Vertical: 60° Diagonal: 135° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.0005 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 355° Vertical: 0 to 80° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2688 x 1520 at 30 fps (8.192 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.723, G.726, PCM |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | Input: RCA Output: RCA |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, User Access Log |
| Supported Protocols | ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T, CGI, Milestone, Genetec, P2P |
| Analytics | Tampering, Memory Card Error, Network Error, Unauthorized Access, IP Address Conflict, Missing Object, Abandoned Object, Scene Change, Fast Moving, Parking Detection, Crowd Gathering, Loitering Detection, Smart Plan Schedule, Perimeter Protection (Tripwire & Intrusion), People Counting (Line Crossing, Region), Queue Management (People in Line, Wait Time), Face Detection, Smart Motion Detection (Human & Vehicular) |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | 512 MB RAM / 128 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 6.9 W PoE: 7.9 W |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 2 x White LEDs up to 65.6' / 20 m |
| Video Management Software | DSS, DMSS |
| Supported Languages | |
| Certifications | |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | �: 4.8 x H: 3.7" / �: 122.0 x H: 94.0 mm |
| Weight | 1.57 lb / 0.71 kg |
