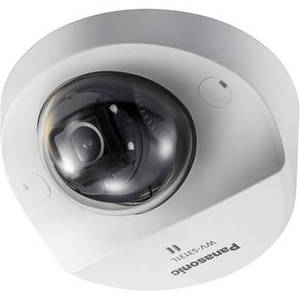

WV-S3131L 1080p Network Dome Camera with Night Vision
Product Description
The WV-S3131L 1080p Network Dome Camera with Night Vision from i-PRO uses a 1/3" CMOS image sensor to capture 1920 x 1080 resolution video at 60 fps. An IR LED provides up to 49' of night vision. The camera's 2.8mm fixed lens delivers a 108° horizontal field of view. Audio pickup is possible thanks to a built-in electret condenser microphone. An onboard memory card slot accepts microSD/SDHC/SHXC cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices.
This camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices.
| Camera | |
| Sensor | 2 MP 1/3" CMOS |
| Lens Mount | |
| Focal Length | 2.8mm |
| Maximum Aperture | f/2.3 |
| Zoom | Digital: 4x |
| Lens Field of View | Horizontal: 108° Vertical: 60° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.0019 Lux B&W: 0 Lux |
| Shutter Speed | 1/10000 to 16/30 Seconds |
| Camera Angle Adjustment | Horizontal: -45 to 45° Vertical: 0 to 90° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 60 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | AAC, G.711, G.726 |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, DDNS, DHCP, DNS, DiffServ, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles S & G |
| Analytics | Video Motion Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of March, 2019: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [64 GB Maximum] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 3.8 W |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 10 to 90% |
| IP Rating | |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | IR LEDs up to 49.2' / 15 m |
| Video Management Software | |
| Supported Languages | English French German Italian Japanese Portuguese Russian Simplified Chinese Spanish |
| Certifications | |
| Material of Construction | Plastic, Polymer |
| Dimensions | �: 4.1 x H: 2.0" / �: 104.0 x H: 51.0 mm |
| Weight | 0.56 lb / 255 g |
