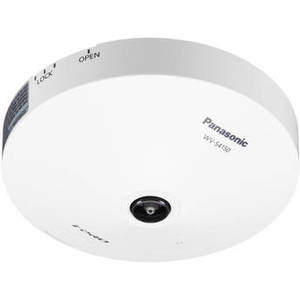

iPro Extreme WV-S4150 5MP Network Dome Camera with Fisheye Lens
Product Description
Capture 5MP panoramic fisheye video even in challenging and fast-changing surveillance environments with the iPro Extreme WV-S4150 Network Dome Camera from i-PRO. Featuring Intelligent Auto (iA) technology, the WV-S4150 monitors scene dynamics and motion to adjust key camera settings automatically in real time, reducing image distortion resulting from motion blur. The camera's 108 dB dynamic range makes for balanced exposure in backlit environments and in scenes with sudden changes in lighting. H.265 Smart Coding technology optimizes storage and bandwidth efficiency while compliance with FIPS 140-2 level 1 standards ensures the security of your footage.
| Camera | |
| Sensor | 5 MP 1/3" CMOS |
| Lens Mount | |
| Focal Length | 0.8mm |
| Maximum Aperture | f/2.4 |
| Zoom | Digital: 4x |
| Lens Field of View | Horizontal: 186° Vertical: 186° |
| IR Cut Filter | |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.02 Lux B&W: 0.013 Lux |
| Shutter Speed | 1/10000 to 16/30 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2192 x 2192 at 30 fps |
| Supported Video Compression | H.264, H.265 |
| Multi-View Streaming | Yes, 4 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC, G.711, G.726 |
| Built-In Mic | Yes |
| Built-In Speaker | No |
| Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, DDNS, DHCP, DNS, DiffServ, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | |
| Analytics | With optional WV-SAE200 software |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of April, 2018: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 3 / 2 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 4.6 W |
| Environmental | |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 10 to 90% |
| IP Rating | |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 |
| Illumination | |
| Video Management Software | SAE200 |
| Supported Languages | English French German Italian Japanese Portuguese Russian Spanish Traditional Chinese |
| Certifications | UL, as per Manufacturer |
| Material of Construction | Plastic |
| Dimensions | �: 5.9 x H: 2.0" / �: 150.0 x H: 50.5 mm |
| Weight | 0.86 lb / 390 g |
