O8D8M 8MP Outdoor Network Dome Camera with Night Vision

Product Description

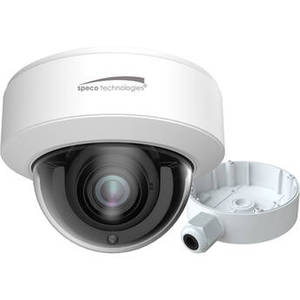

Monitor an indoor or outdoor area with the white O8D8M 8MP Network Dome Camera from Speco Technologies. This NDAA-compliant unit uses a 1/2.8" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 30 fps. IR LEDs provide up to 164' of night vision. The camera features a 2.8-12mm motorized varifocal lens that delivers a 96 to 32° horizontal field of view. Two-Way audio is possible thanks to a built-in microphone, an audio input, and an audio output. A memory card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. A junction box is included for cable management. The camera is housed in an IP67- and IK10-rated enclosure for safe outdoor use in areas at risk of vandalism.
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. A junction box is included for cable management. The camera is housed in an IP67- and IK10-rated enclosure for safe outdoor use in areas at risk of vandalism.
Camera | |
Sensor | 8 MP 1/2.8" CMOS |
Lens Mount | |
Focal Length | 2.8 to 12mm |
Maximum Aperture | |
Zoom | Optical: 4.3x |
Lens Field of View | Horizontal: 96 to 32° Vertical: 64 to 18.4° Diagonal: 103.8 to 36.5° |
IR Cut Filter | Mechanical |
Day/Night | True |
Minimum Illumination | Color: 0.015 Lux B&W: 0 Lux |
Shutter Speed | 1/100000 to 1 Seconds |
Camera Angle Adjustment | Horizontal: 0 to 345° Vertical: 0 to 77° |
Smart Specs | |
Smart Home Ecosystems | |
App Compatible | |
Cloud Platform | |
Desktop Software | |
Video | |
Multi-View Streaming | |
Video Modes | |
Streaming Resolution | 3840 x 2160 at 30 fps (12 Mb/s ) |
Supported Video Compression | H.264, H.265, MJPEG |
Multi-View Streaming | Yes, 3 Streams |
Automatic Gain Control | Yes |
Video Output Connectors | |
Output Formats | |
Audio | |
1- or 2-Way Audio | One-Way |
Audio Formats | G.711 |
Built-In Mic | Yes |
Built-In Speaker | |
Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
Pan & Tilt | |
Up-the-Coax Communication | |
Presets | |
Supported Control Protocols | |
Pan/Tilt | None |
Move Speed | |
Movement Range | |
Networking | |
Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection, Watermark |
Supported Protocols | DDNS, DHCP, FTP, HTTP, NTP, PPPoE, QoS Layer 3 DiffServ, RTSP, SMTP, UDP, UPnP |
Wireless | |
Frequency Range | |
Wi-Fi Bands | |
Wi-Fi Standards | |
CDMA 3G | |
GSM 3G/3.5G | |
4G LTE | |
5G NR | |
Bluetooth | |
Wireless Range | |
Encryption | |
System Integration | |
Application Programming Interface (API) | ONVIF Profiles G, S & T |
Analytics | Perimeter Protection Line Crossing, Region Entrance, Exiting, Intrusion (Human, Motor Vehicle/Non-Motor Classification) Target Counting Line Crossing, Human/Motor Vehicle/Non-Motor Vehicle Counting Exception Detection Scene Change, Video Blur, Video Color Cast Detection Face Detection & Face Capture |
Built-In Installation Aids | |
OS Compatibility | Android iOS *As of October, 2021: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms | |
Sensors | |
Sensor Range | |
Event Trigger | Yes |
Event Action | Recording, Notification, Alarm |
Data Streaming | Yes |
Alarm I/O | 1 / 1 |
Hardware | |
Memory | |
Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
Internal Storage | None |
External Storage Options | |
Power | |
Power | |
Built-In Battery | |
Battery Type | |
Power Source | DC, PoE 802.3af (15 W) |
Power Consumption | 10.5 W |
Environmental | |
Operating Temperature | -40 to 140°F / -40 to 60°C |
Startup Temperature | |
Storage Temperature | |
Operating Humidity | 0 to 95% |
IP Rating | IP67 |
IK Rating | IK10 |
General | |
Inputs/Outputs | 1 x RJ45 1 x Power 1 x BNC |
Illumination | IR LEDs up to 164' / 50 m |
Video Management Software | SecureGuard VMS, SecureGuard CMS, SecureGuard Client |
Supported Languages | |
Certifications | |
Material of Construction | |
Dimensions | �: 5.6 x H: 3.9" / �: 141.0 x H: 100.2 mm |
Weight | 1.96 lb / 0.89 kg |
