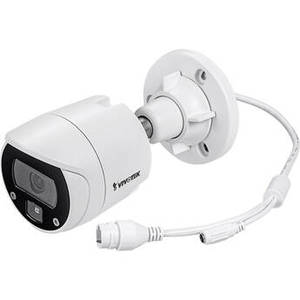

IB9369-F3 2MP Outdoor Network Bullet Camera with Night Vision & 3.6mm Lens
Product Description
Monitor an indoor or outdoor area with the IB9369-F3 2MP Network Bullet Camera from Vivotek. This unit uses a 1/3.1" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. An IR LED provides up to 98' of night vision. The camera's 3.6mm fixed lens delivers a 90° horizontal field of view. A memory card slot accepts microSD/SDHC/SDXC cards up to 1TB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure for outdoor use in areas at risk of vandalism.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 2 MP 1/3.1" CMOS |
| Lens Mount | |
| Focal Length | 3.6mm |
| Maximum Aperture | f/2.2 |
| Zoom | Digital: 18x |
| Lens Field of View | Horizontal: 90° Vertical: 49° Diagonal: 106° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.1 Lux B&W: 0 Lux |
| Shutter Speed | 1/32000 to 1/5 Seconds |
| Camera Angle Adjustment | Vertical: 0 to 90° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 2 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | |
| Built-In Mic | |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Five-Window Video Motion Detection, People Detection, Time Filter |
| Built-In Installation Aids | |
| OS Compatibility | Windows 7 Windows 8 Windows 10 macOS 10.12 *As of October, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | 256 MB RAM / 256 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [1 TB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 5.1 W PoE: 6.5 W |
| Environmental | |
| Operating Temperature | -22 to 131°F / -30 to 55°C |
| Startup Temperature | -22 to 122°F / -30 to 50°C |
| Storage Temperature | |
| Operating Humidity | 95% |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 |
| Illumination | IR LEDs up to 98.4' / 30 m |
| Video Management Software | VAST, Shepherd |
| Supported Languages | English French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese |
| Certifications | |
| Material of Construction | |
| Dimensions | �: 3.6 x L: 7.1" / �: 91.1 x L: 181.5 mm |
| Weight | 1.5 lb / 671 g |
