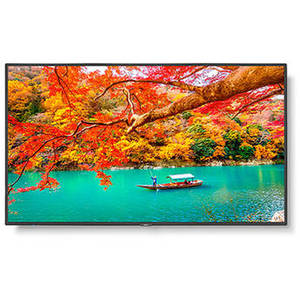

MultiSync MA 43" Class HDR 4K UHD Digital Signage IPS LED Display
Product Description
Advertise your product or business digitally with the NEC MultiSync MA 43" Class HDR 4K UHD Digital Signage IPS LED Display. It features 500 cd/m² of brightness with an 8000:1 contrast ratio to help enhance visibility in bright environments. It has two HDMI and two DisplayPort inputs for digital HD video sources, and a computer module can be installed to expand the display's functionality. It can be installed in either portrait or landscape orientation to accommodate your specific signage needs.
| Display | |
| Screen Size (Diagonal) | 43" |
| Resolution | 3840 x 2160 |
| Supported Display Resolutions | Maximum: 7680 x 4320 / 30 Hz |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Color Gamut | 86% DCI-P3 |
| HDR Compatibility | HDR10, Hybrid Log Gamma |
| Brightness | 500 cd/m� (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 8000:1 |
| Dynamic Contrast Ratio | |
| Response Time | 8 ms (GtG) |
| Refresh Rate | 60 Hz |
| Horizontal Frequency | 15 to 135 kHz (Digital) |
| Vertical Frequency | 23 to 76 Hz (Digital) |
| Dot Pitch | 0.25 x 0.25 mm |
| Pixels Per Inch (ppi) | 102 ppi |
| Backlighting Technology | Edge LED |
| Pixel Clock Frequency | |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI 2.0 – Audio, Video (Bottom) 2 x DisplayPort 1.4 – Audio, Video (Bottom) |
| Output Ports | 1 x HDMI – Audio, Video (Bottom) 1 x DisplayPort – Audio, Video (Bottom) 1 x 1/8" / 3.5 mm – Audio (Bottom) 1 x Speaker Terminal – Audio (Bottom) |
| USB Ports | 1 x USB 2.0 Type-A - Audio/Photo/Video/Power (Bottom) 1 x USB 2.0 Type-A - Service (Bottom) 1 x USB (Version Unspecified) Type-B - Service (Bottom) |
| Ethernet Ports | Bottom: 2 |
| Control | RS-232C via DE-9/DB-9 Input IR via 1/8" / 3.5 mm Input |
| Digital Media Slot | None |
| Number of OPS/Expansion Slots | 1 |
| General | |
| TV Tuner | No |
| Display Orientation | Landscape, Portrait |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | Yes |
| Lighting Lifespan | |
| Surface | |
| Haze Level | 28% |
| Audio | |
| Built-In Speakers | None |
| Processing | |
| External Speaker Output | 2 x 15 W |
| Processor | |
| CPU | |
| Built-In Mic | |
| NFC | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Multi-Input Support (PIP/PBP) | |
| Supported Languages | |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Typical: 70.0 W Maximum: 235.0 W Network Standby: 2.0 W Standby: < 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.1 to 2.6 A |
| DC Input Power | |
| Power Adapter Type | |
| Apparent Power | |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 80% |
| Operating Altitude | 9842' / 3000 m |
| Storage Altitude | 40,000' / 12,192 m |
| Operating Shock | |
| Operating Vibration | |
| Certifications | |
| Physical | |
| Wall Mounting | 300 x 300 mm |
| Material of Construction | |
| Audible Noise | |
| IP Rating | |
| IK Rating | |
| IR Sensor | Yes |
| Glass Thickness | |
| Bezel Thickness | 11 mm (Right/Top/Left) 15.6 mm (Bottom) |
| Duty Cycle | |
| Dimensions | 38.1 x 22.1 x 2.6" / 968.2 x 561.0 x 67.1 mm |
| Weight | 40.7 lb / 18.5 kg |
