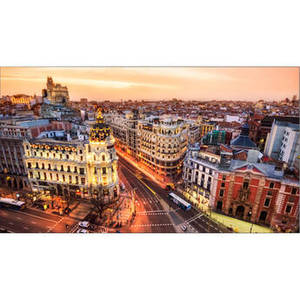

VHT-E Series 55" Class Full HD Video Wall IPS LED Display
Product Description
Advertise your product or business digitally with the Samsung VHT-E Series 55" Class Full HD Video Wall IPS LED Display. It outputs up to 700 cd/m² of brightness to help enhance visibility in bright environments like shopping malls. Its slim bezel design lets you mount multiple units together to create a vibrant video wall. The VHT-E has DVI-D, DisplayPort 1.2, and two HDMI 2.0 inputs for connection to a variety of source devices. As an added convenience, the display includes a remote control and a removable IR sensor.
| Display | |
| Screen Size (Diagonal) | 54.6" |
| Resolution | 1920 x 1080 |
| Supported Display Resolutions | |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 700 cd/m� (Maximum) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 47.6 x 26.8" / 1209.6 x 680.4 mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 500,000:1 |
| Response Time | 8 ms (GtG) |
| Refresh Rate | |
| Horizontal Frequency | 57.3 to 70 kHz |
| Vertical Frequency | 48 to 75 Hz |
| Dot Pitch | 0.63 x 0.63 mm |
| Pixels Per Inch (ppi) | |
| Pixel Clock Frequency | |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI 2.0 Audio, Video 1 x DisplayPort 1.2 Audio, Video 1 x DVI-D Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x DisplayPort 1.2 – Audio, Video 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 1 x USB 2.0, USB-A - Service |
| Ethernet Ports | 1 |
| Control | RS-232C via DE-9/DB-9 |
| Other I/O | 1 x 1/8" / 3.5 mm IR Input |
| General | |
| TV Tuner | No |
| Display Orientation | |
| HDCP Support | Yes, Version 2.2 |
| Maximum Multiple Display Configuration | 15 x 15 |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | |
| Surface | |
| Surface Treatment | Anti-Glare |
| Haze Level | 28% |
| Processing | |
| Operating System | |
| GPU | |
| Storage | |
| RAM | |
| Supported File Systems | |
| Slot | |
| Operating System Support | |
| Built-In Mic | |
| NFC | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Multi-Input Support (PIP/PBP) | |
| Supported Languages | |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Maximum: 270.0 W Typical: 116.0 W Standby: < 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | |
| Power Adapter Type | Internal |
| Apparent Power | |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | |
| Operating Humidity | 10 to 80% |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| Operating Shock | |
| Operating Vibration | |
| Certifications | |
| Physical | |
| Wall Mounting | 600 x 400 mm |
| Material of Construction | |
| Audible Noise | |
| IP Rating | IP5X |
| IK Rating | |
| IR Sensor | |
| Glass Thickness | |
| Bezel Thickness | 0.9 mm |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 47.7 x 26.8 x 2.8" / 1211.0 x 681.7 x 70.0 mm |
| Weight | 42.77 lb / 19.40 kg |
